Installing the Display Hinge
1. Place the display hinges in its place.
2. Tighten the screws to secure the display hinges to the display assembly.
3. Install:
a. display panel
b. display bezel
c. display assembly
d. base frame
e. keyboard
f. system fan
g. WLAN card
h. hard drive
i. battery
j. base cover
4. Follow the procedures in After Working Inside Your computer.
Removing the Camera
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. base cover
b. battery
c. display bezel

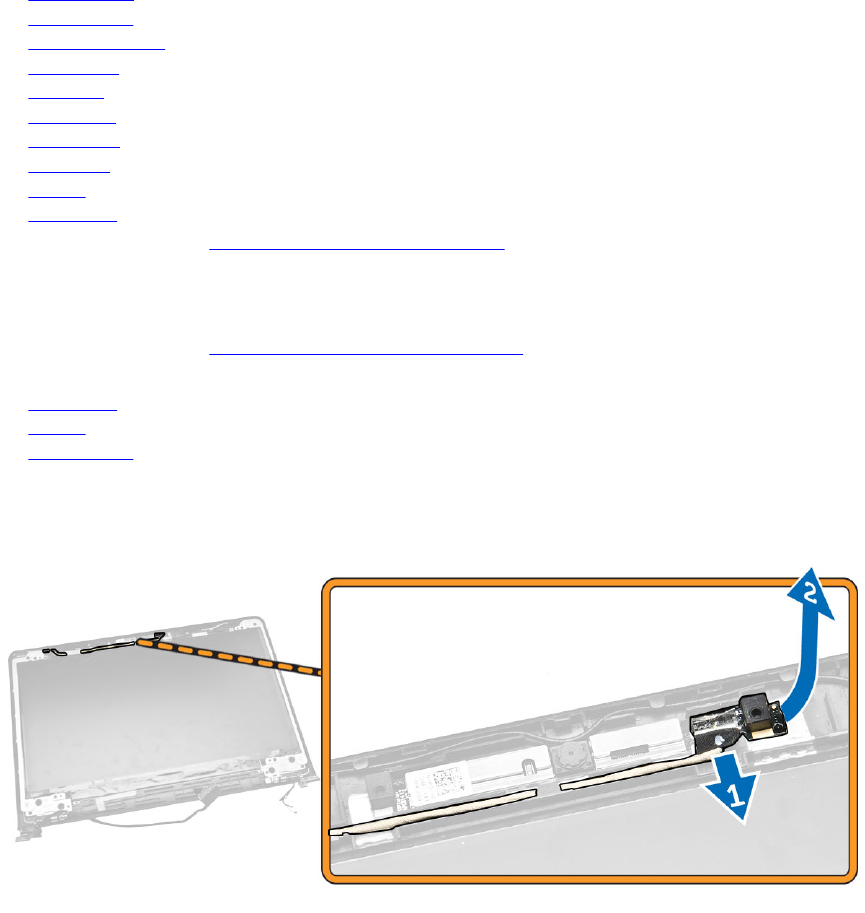

3. Perform the following steps as shown in the illustration:
a. Disconnect the camera cable from the connector on the camera module [1].
b. Lift and remove the camera from the display assembly [2].
