 Internal Card With Bluetooth Wireless Technology

Dell™XPS™L501XServiceManual

Removing the Bluetooth Card

Replacing the Bluetooth Card



Removing the Bluetooth Card



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the module cover (see Removing the Module Cover).



4. Remove the memory module(s) (see Removing the Memory Module(s)).



5. Remove the palm-rest assembly (see Removing the Palm-Rest Assembly).



6. Remove the keyboard (see Removing the Keyboard).



7. Remove the display assembly (see Removing the Display Assembly).



8. Follow the instructions from step 9 to step 14 in Removing the Top Cover.



9. Turn the top-cover assembly over.



10. Disconnect the Bluetooth-card cable from the connector on the system board.



11. Lift the Bluetooth card from the slot on the top cover.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

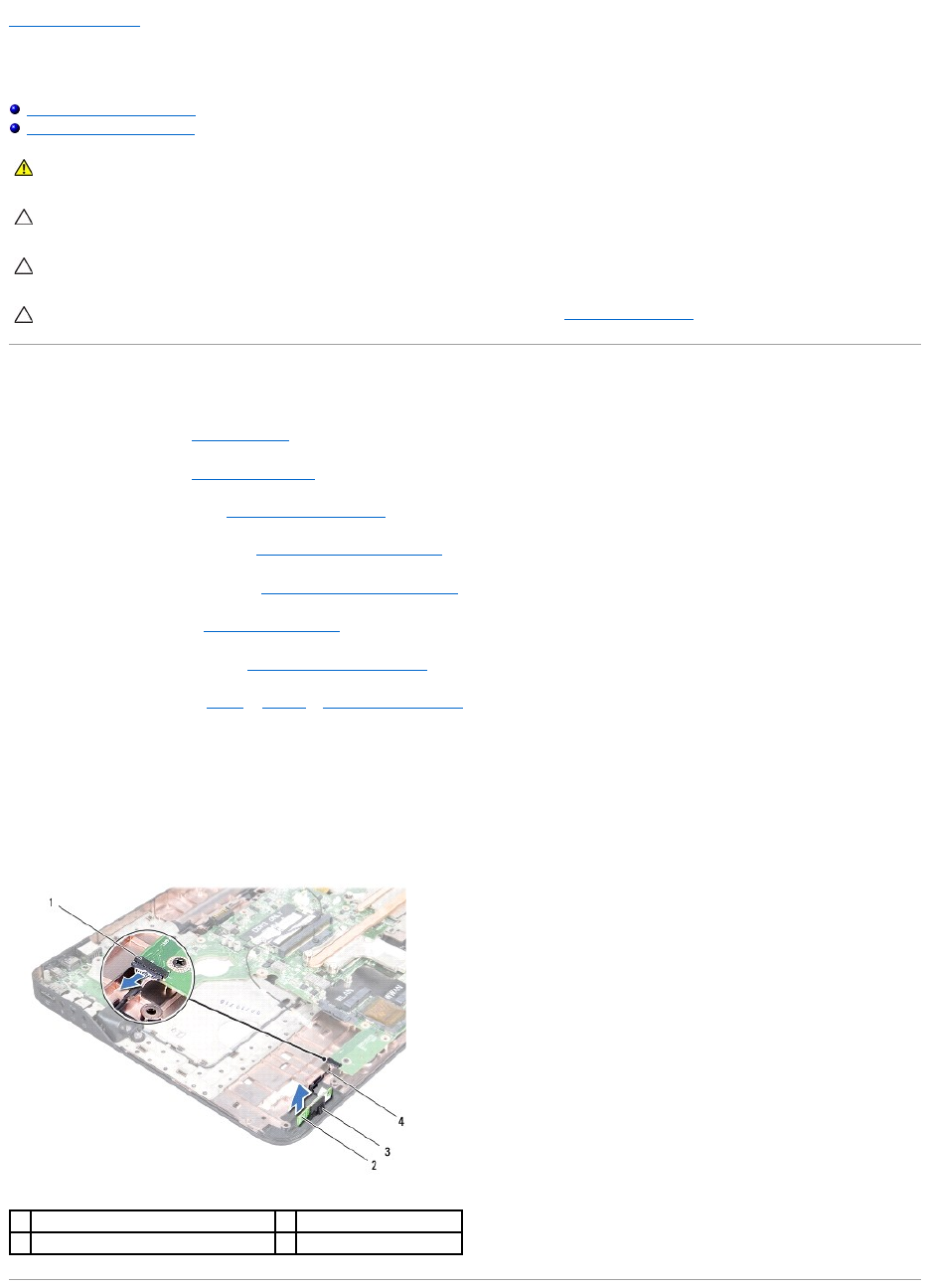

Bluetooth-card cable connector

Bluetooth card

Bluetooth card slot

Bluetooth-card cable
