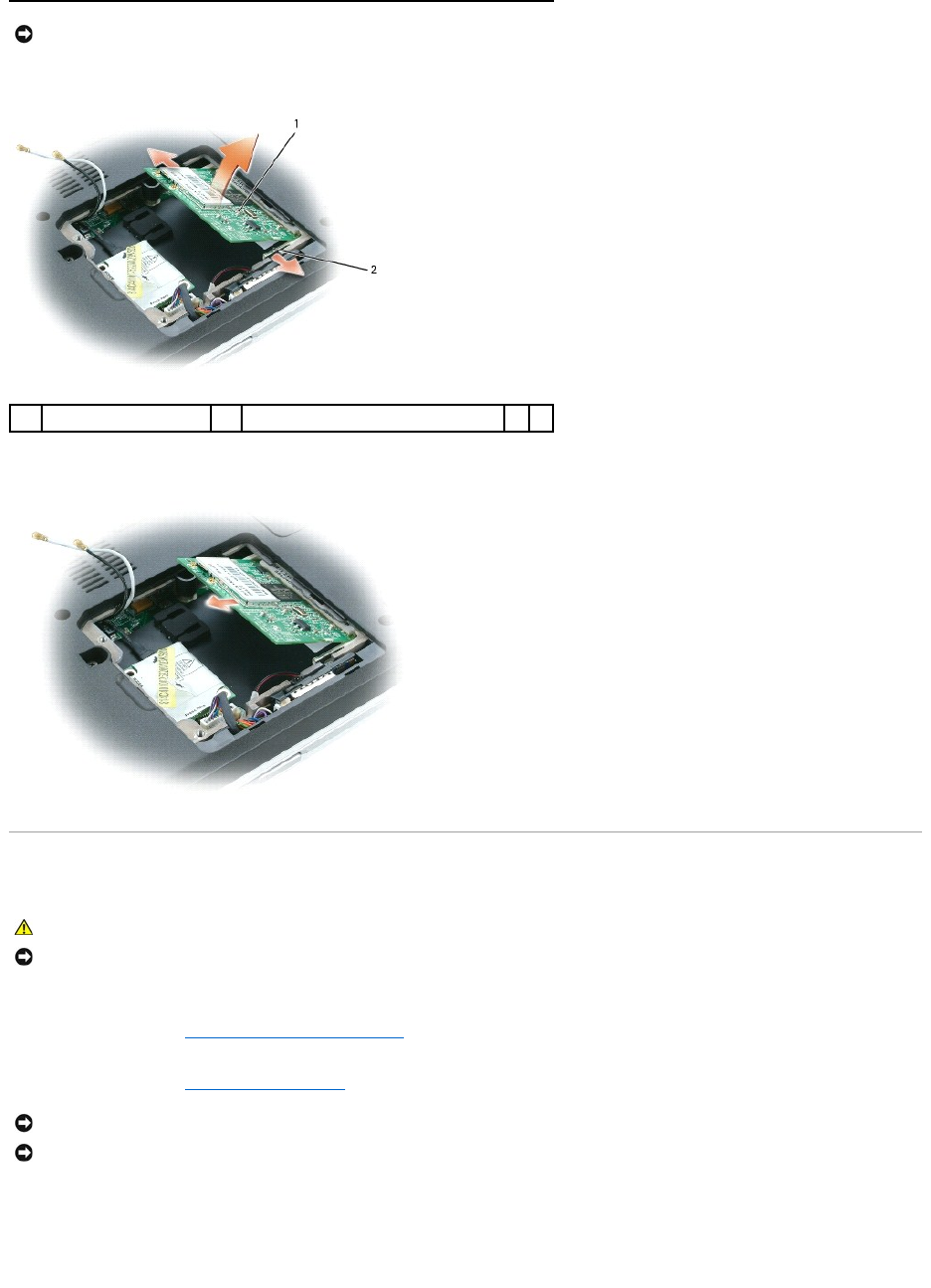

4. Use your fingertips to carefully spread apart the metal clips securing each end of the Mini PCI card until the card pops up.
5. Remove the Mini PCI card from the connector at a 45-degree angle.
Replacing the Mini PCI Card
1. Follow the instructions in Preparing to Work Inside the Computer
2. Follow the instructions in Removing the Mini PCI Card, as applicable.
3. Install the new Mini PCI card:
a. Align the notch in the Mini PCI card edge connector with the tab in the connector slot.
b. Slide the Mini PCI card firmly into the slot at a 45-degree angle, and then rotate the card down until it clicks into place. If you do not feel the click,
NOTICE: To prevent damage to the Mini PCI card connector, do not use tools of any kind to spread the metal clips that secure the Mini PCI card.
1
Mini PCI card
2
metal retention clips (2)
CAUTION: Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as the
back panel) on the computer.
NOTICE: To avoid damaging the Mini PCI card, make sure the antenna cables are not under the card when you secure the card into place.
NOTICE: The edge connector is keyed to ensure correct insertion. If you feel resistance, check the connector and realign the card.
