48

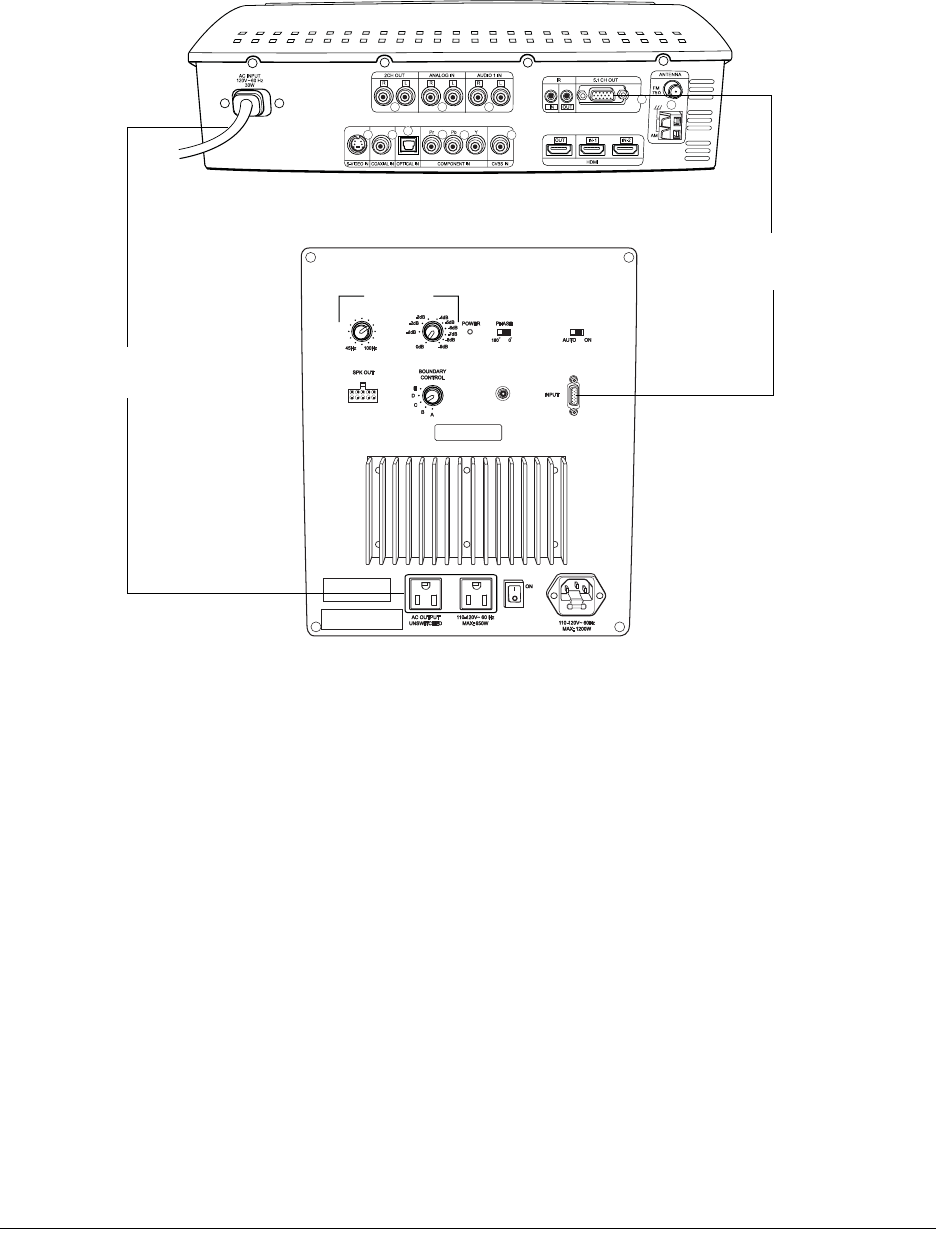

5 Locate the 16-foot (5-meter) AV data cable (packed in box #3). Connect it from the 5.1CH OUT port on
the AV controller to the
INPUT port on the subwoofer.
6 Connect the AV controller’s power cable to the remaining
AC OUTPUT connector on the subwoofer. You
can also connect it directly to a grounded power outlet in your home.
7 Connect the main power cord (packed with the subwoofer) to the power inlet on the back of the
subwoofer. Connect the other end to a grounded power outlet in your home.
Note
It is recommended that the Ensemble HD system be powered by a dedicated 20-amp circuit. Typical power
consumption is about 800 watts.
8 Set the MASTER POWER switch to the ON position.
9 Set the
PWR ON MODE switch to the AUTO position. This lets the subwoofer turn on when it detects a
signal.
10 Wrap any excess cable, secure it with cable ties (not included), and store it behind the subwoofer.
47
61 82
FREQ LEVEL
PWR ON MODE
MASTER
POWER
SUB OUT
BASS CONTOUR CONTROL
98
99
Connect power cord to
outlet on subwoofer
Connect these ports with the
AV data cable
