1.2
MODEL CODE 486A
Engine Briggs & Stratton Intek Edge 55
Engine Type 12K682-0116-E1
Engine / Cutterblade Speed 2800 rpm
Fuel Type Unleaded Petrol
Fuel Capacity 1.5 litres
Oil Type SAE 30 engine oil
Oil Sump Capacity 0.6 litres
Spark Plug 491055 (Briggs & Stratton)
Spark Plug Gap 0.76mm
Width of Cut 480mm
Height of Cut 12 - 65mm
Overall Dimensions 1044 x 514 x 1377mm
Dry Weight 49 Kg

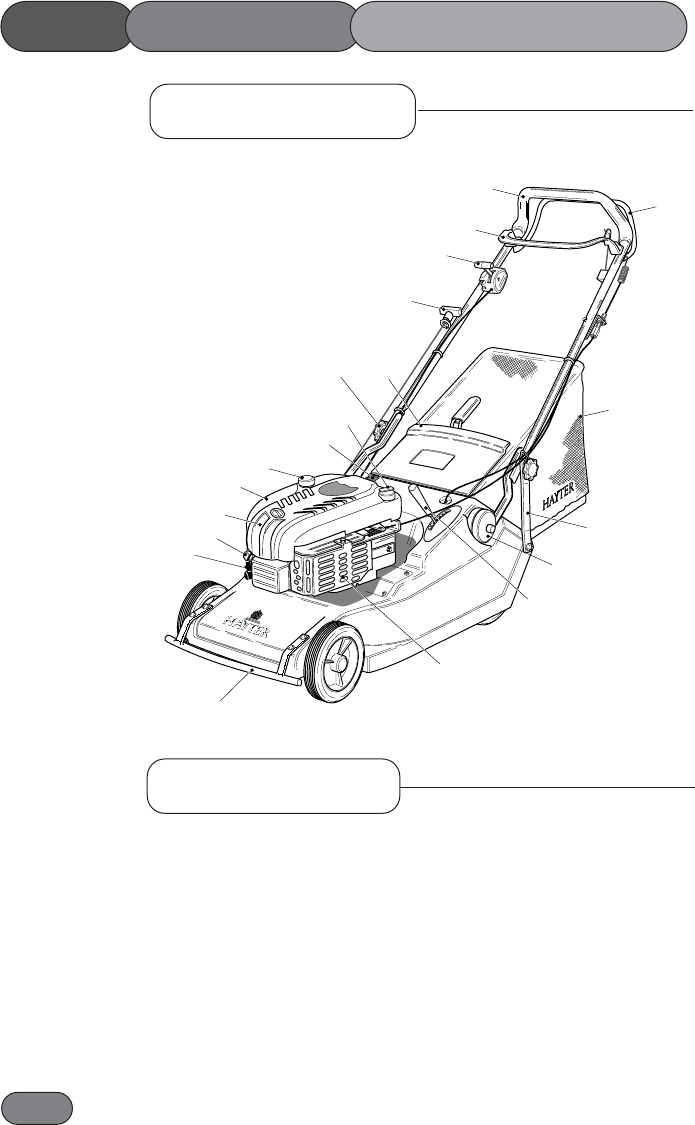

1. Spark Plug Lead
2. Primer Bulb
3. Engine Cover
4. Air Cleaner
5. Fuel Cap
6. Serial Number Label
7. Oil Filler Cap & Dipstick
8. Handlebar Securing Knob
9. Rear Deflector
10. Engine Start Grip
11. Throttle Control
12. Engine Stop Lever
13. Handlebar
14. Ground Drive Clutch Lever
15. Grassbag Assembly
16. Support Brace
17. Handlebar Height Adjuster
18. Height of Cut Lever
19. Exhaust Guard
20. Front Rail
20
1
2
4
5
6
7
9
10
12
13
14
15
16
18
19
11
8
3
17
Main Features
Specifications
MAIN FEATURES /SPECIFICATIONS
