IU 645 / 9826 7 TowerFeed
TM
for the HP LaserJet 5000
INSTALLATION
Warning
:
TowerFeed may weigh up to 41 kilograms (90 pounds) depending on configuration. To prevent back strain
or injury, enlist the help of someone and bend your knees when lifting the unit.
Warning
:
POWER OFF your printer and TowerFeed and disconnect all power and interface cables before you
proceed with the installation.
Hardware Installation
Remove Transportation Inserts
• Pull out, lift upwards and remove the trays from TowerFeed so
as to remove the transportation inserts (Fig. 8). There are two
at each side (keep the inserts for reshipment).
• Re-insert and close the trays.
Note:
Located on the right side of each tray you will find coding pins for the paper size. They are set by the factory
and must not be changed.
Inserting the front Positioning Pin
• Slide the positioning pin from the accessories box into the
cut-out of the TowerFeed cover plate until it snaps into
position with an audible click. Make sure that the pin
looks upwards (Fig. 9).
Note:
To remove the positioning pin, push a pin (e.g. screw
driver) through the hole on top of the cover plate. This
will release the retaining spring and you can remove
the positioning pin.

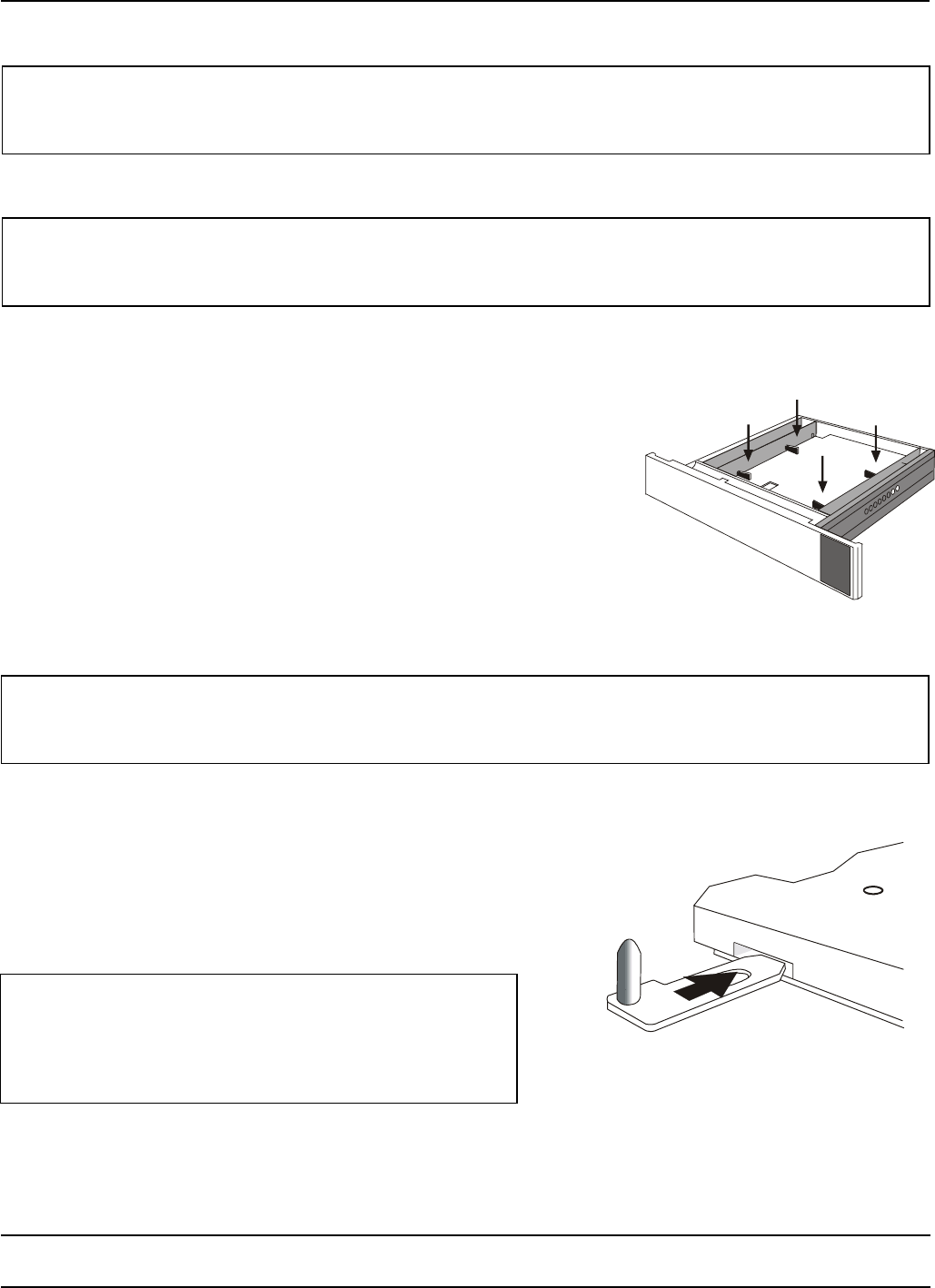

Fig. 8 Removing Transportation Inserts
Fig. 9 Inserting the front
Positioning Pin
