194 MFP disassembly/assembly ENWW
Removing and reinstalling the
pre-transfer roller
WARNING! The interlock, which is
turned off when the front
right or left door opens or
closes, should never be
turned on forcibly with the
ADU stand pulled out.
CAUTION Be sure the power cord has
been unplugged from the
wall outlet.
Procedure

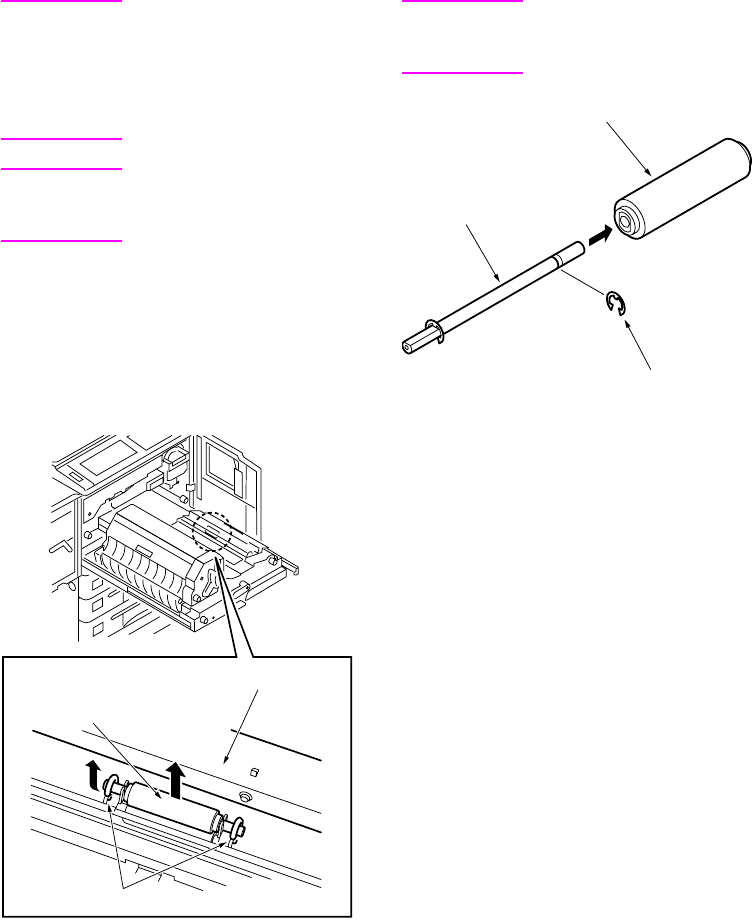

1 Pull out the ADU stand from the MFP.
2 Remove the two springs.
3 Open the pre-transfer jam handler to
remove the pre-transfer roller assembly.
4 Remove the E-ring to remove the
pre-transfer roller from the shaft.
CAUTION When reinstalling, pay
attention to the position of
the E-ring.
5 Reinstall the above parts following the
removal steps in reverse.
Pre-transfer jam handler
Springs
Pre-transfer roller assembly
Pre-transfer roller
Shaft
E-ring
