Chapter 1
HP Blade Server bh7800 Overview
Air Flow
25
Air Flow

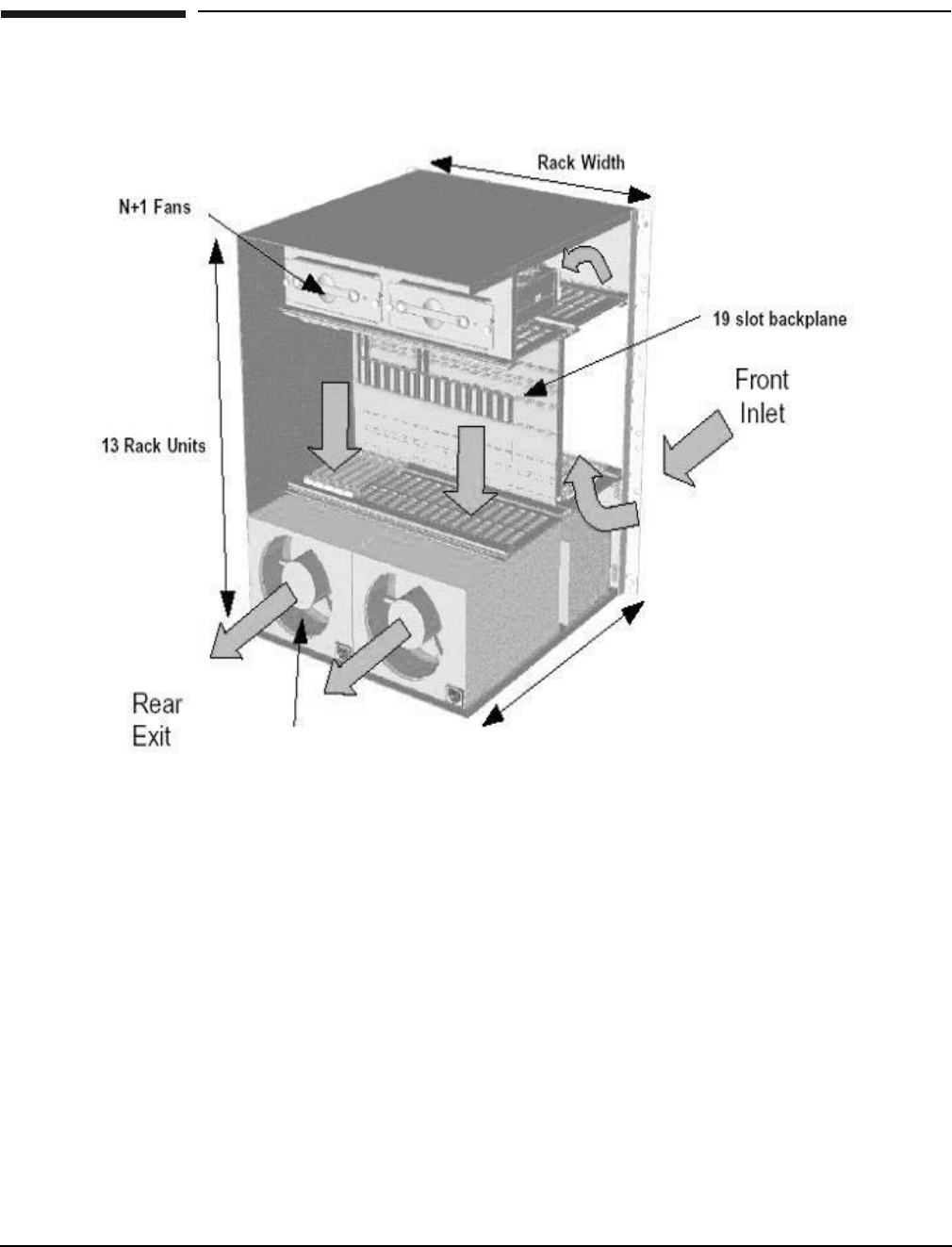

Figure 1-13 bh7800 Cooling Airflow (Chassis Rear View)
The bh7800 utilizes a front to back cooling scheme. Four 150mm diameter 48V DC fans cool the system, one
in each power supply and two in independent carriers. Refer to Appendix A for System Specifications. Air
enters the vent along the lower front surface of the chassis and passes through the front sections of the power
