Clearing Paper Path Jams
3-40 Printer Tasks
Clearing a Reversing Unit Area Jam
The reversing unit area paper path jam is located to the left of the duplex unit.
1. Open the front door and turn Lever 4 fully clockwise, shown in Figure 3-56. This
removes pressure on paper leaving the fuser unit area.

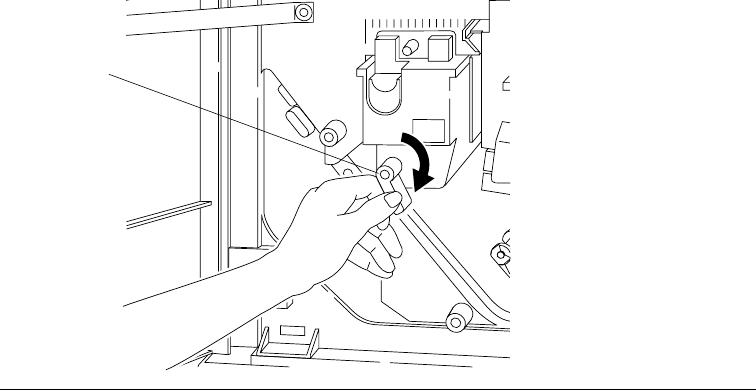

Figure 3-56 Opening Lever 4
2. Locate Lever 5 and push it downward and away from the fuser unit area, as shown in
Figure 3-57.
Lever 4
