Operations 27
Access the product rear panel

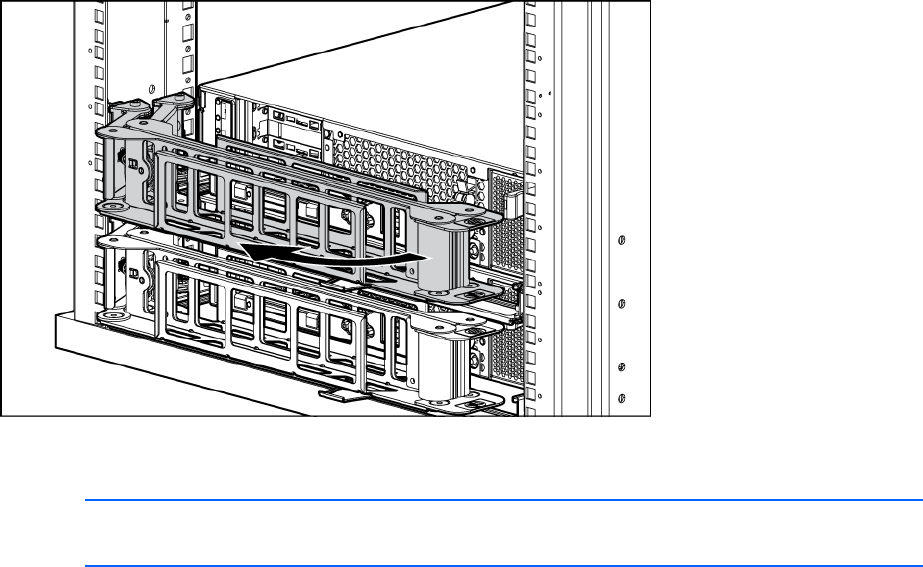

Cable management arm with left-hand swing
To access the server rear panel, open the cable management arm.
Cable management arm with right-hand swing
NOTE: To access some components, you may need to remove the cable management arm.
To access the product rear panel components, open the cable management arm:
1. Power down the server (on page 21).
2. Swing open the cable management arm.
3. Remove the cables from the cable trough.
