Manual Calibrations 4-17
The printer prints a jet map test pattern.
If a line segment is missing or broken, the jet number
shown next to it is out.
If a line segment is marked with a code letter:
R — no replacement
S — user disqualified “soft” jetout
H — user disqualified “hard” jetout
D — disqualified (and replaced) by AutoJet

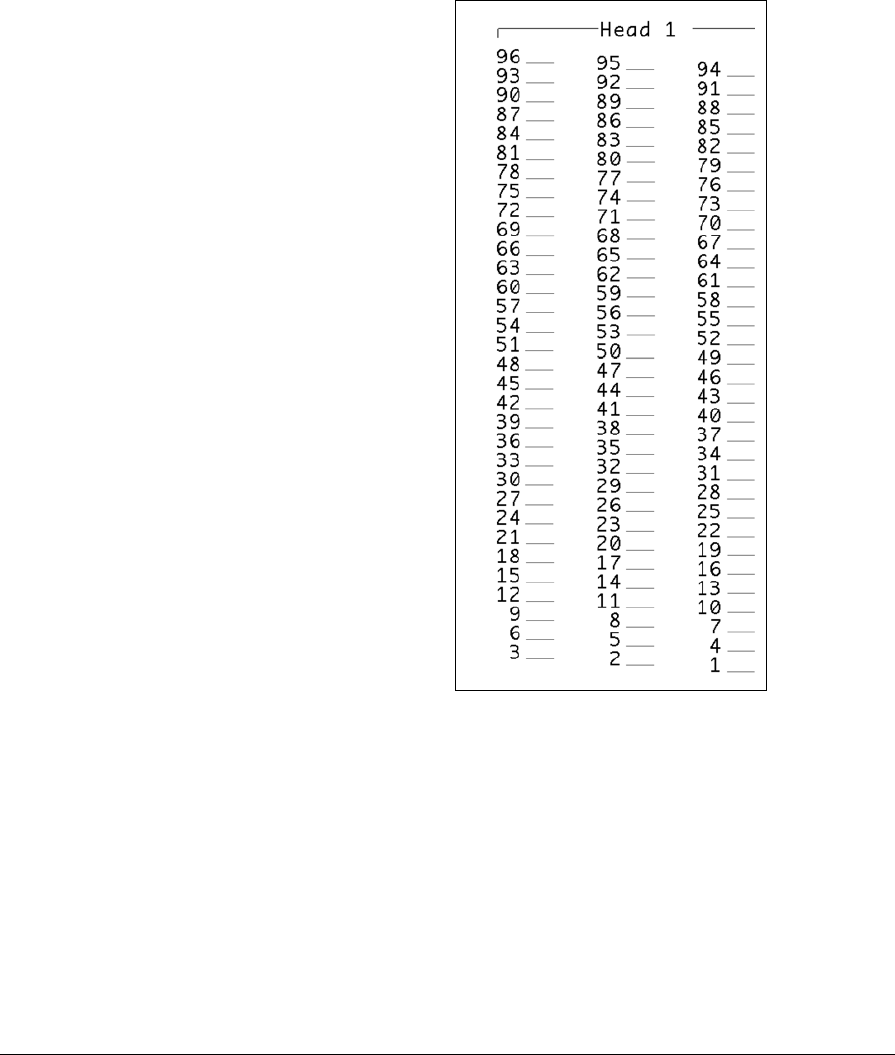

Fig. 4-4. Sample jet mapping pattern (Head 1 of 16)
