Rotate Collate

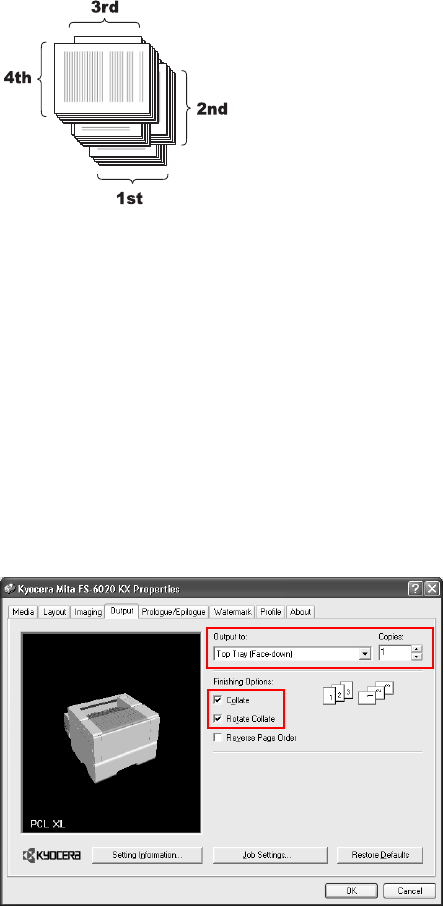

The Rotate Collate stacks the sets produced in the top tray in alternating orientations.
This function is available when printing using A4, B5, and letter size paper. During printing,
the same size paper must be loaded into two separate paper cassettes. For example, Portrait
(A4) and Landscape (A4-R) would be used when printing onto A4 paper. The MP tray can also
be used as a paper source.
This function requires a hard disk installed in the printer or a RAM Disk. For further details on
Hard Disk settings, refer to RAM Disk Settings on page 33.
Using Rotate Collate
1 Access the Properties and click the Output tab.
2From the
Output to list, select Top Tray (Face-down).
3 Enter the number of sets to be output in the
Copies box. The number of pages for all copies
of the document being printed must not exceed the tray capacity.
4 Select the
Collate and Rotate Collate check boxes.
5Click
OK to return to the Print dialog box, and click OK to start printing. The collated
document sets are delivered in alternating horizontal and vertical orientation.
Job Settings
The Job Settings option is available when you install an optional hard disk or a RAM disk on
the printer. For further details on hard disk installation and setup, refer to RAM Disk Settings
on page 33.
Private print and Proof and Hold can be used with a RAM Disk.
