Installing and Replacing Desktop Board Components
33
Installing an Intel
®
Z-U130 USB Solid-State
Drive (or Compatible Device)
An Intel Z-U130 USB Solid-State Drive (or compatible device) can be installed on the
Desktop Board by using the onboard USB 2.0 header indicated in Figure 1, DD. This
header provides support for the solid state
drive.
To install an Intel Z-U130 USB Solid-State Drive (or compatible device) on the Desktop
Board, follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Ali
gn the connector (Figure 11, A) on the bottom of the solid state drive with the
USB 2.
0 header on the Desktop Board. The connectors are keyed and will mate
correctly when the solid state drive is oriented as shown in Figure 11.

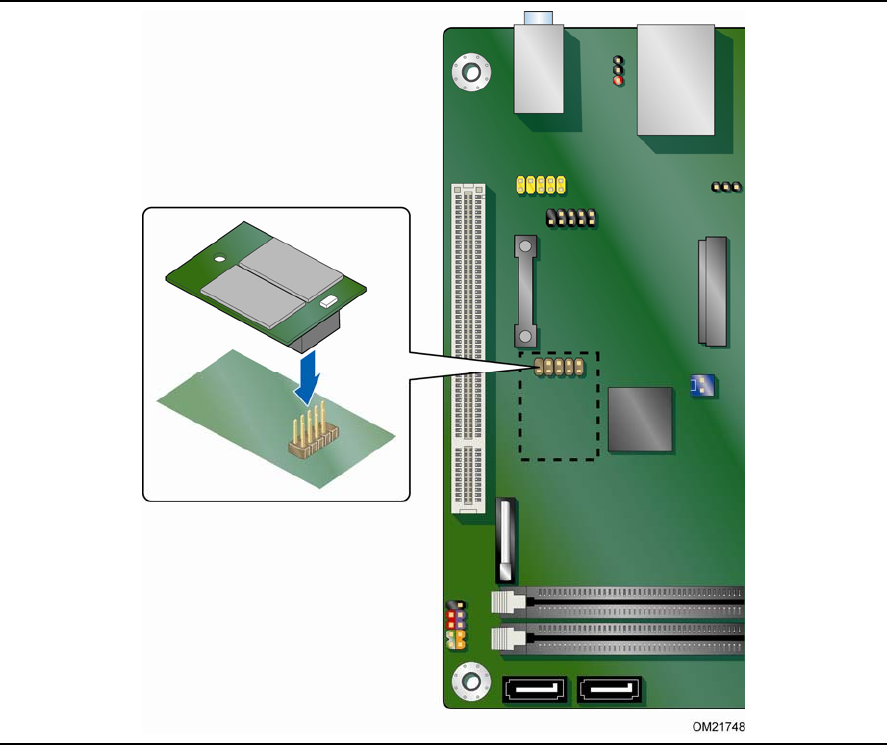

Figure 11. Installing an Intel Z-U130 USB Solid-State Drive
(or Compatible Device)
