7. Reconnect the cables for the adapter.
8. Install the cover (see “Removing and replacing the cover” on page 43).
9. Slide the server into the rack.
10. Reconnect the power cords and any cables that you removed.
11. Turn on the peripheral devices and the server.
Removing and installing a remotely installed RAID adapter battery
To remove and install a remotely installed RAID adapter battery, complete the steps
in this section.
Removing a remotely installed RAID adapter battery
If a RAID adapter battery is installed remotely on the microprocessor 2 air baffle
and you need to replace it, complete the following steps:
1. Read the safety information in “Safety” on page vii and “Installation guidelines”
on page 39.
2. Turn off the server and peripheral devices and disconnect all power cords.
3. Remove the cover (see “Removing and replacing the cover” on page 43).

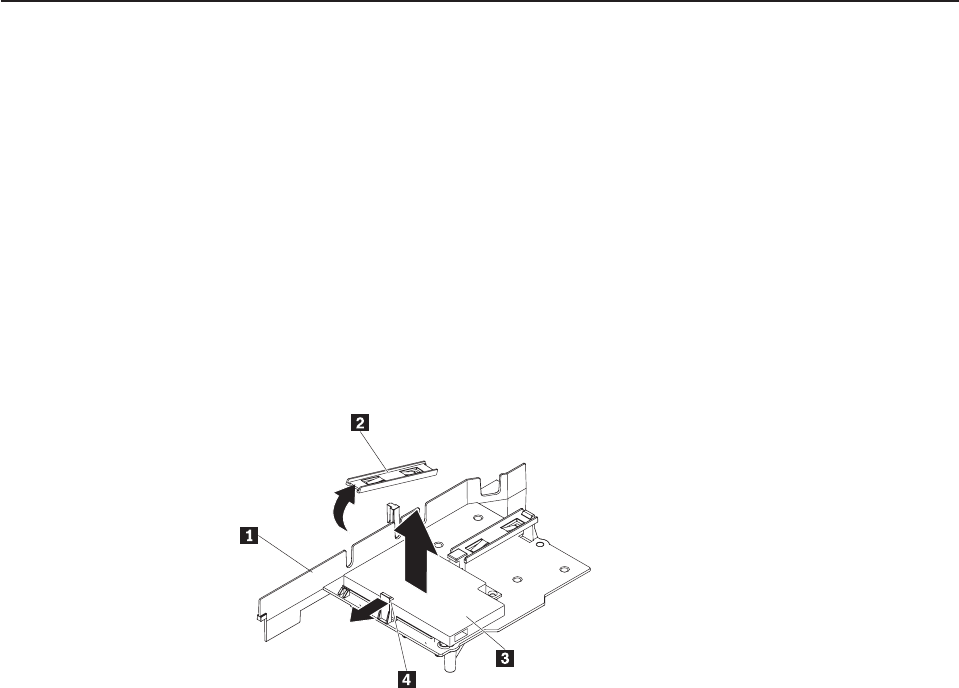

4. From the top of the microprocessor 2 air baffle, remove the battery retention clip
that holds the battery in place. Press the release tab toward the front of the
server and remove the battery retention clip.
1 Microprocessor 2 air baffle
2 Battery retention clip
3 Battery
4 Release tab
5. Disconnect the remote battery cable from the remote battery cable connector on
the battery carrier and lift the battery and battery carrier from the slot. See the
following illustration for the location of the connectors on the battery carrier.
