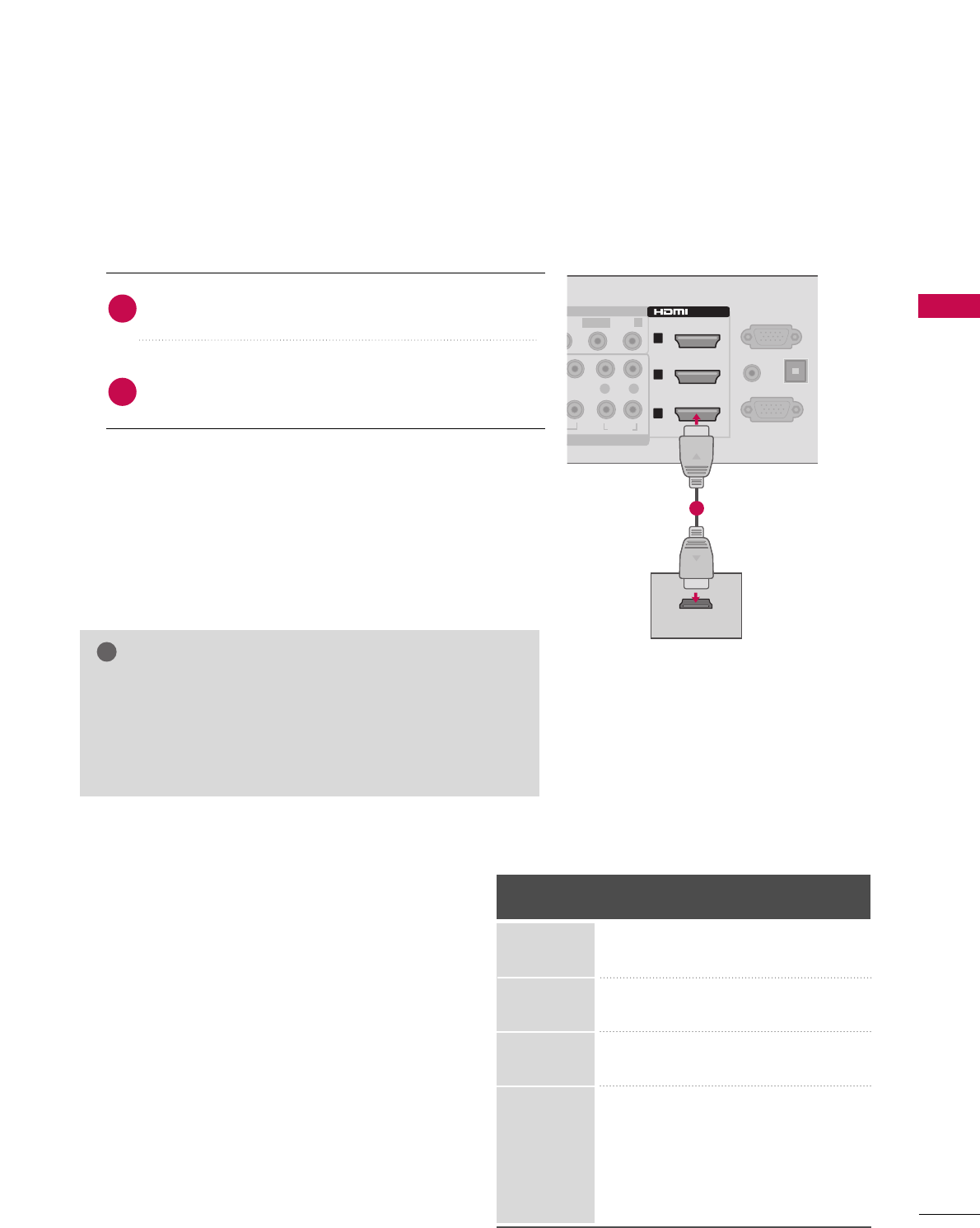

HDMI Connection
Connect the digital set-top box to the HHDDMMII//DDVVII
IINN 11,, 22, 33 or HHDDMMII44 jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select the HHDDMMII11,, HHDDMMII22,, HHDDMMII33 or HHDDMMII44 input
source on the TV using the IINNPPUUTT button on the remote
control.
2
1
HDMI-DTV
Horizontal Vertical
Frequency
(
KHz
)
Frequency
(
Hz
)
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
GG
If an HDMI cable doesn’t support High Speed HDMI, it
can cause flickers or no screen display. In this case use the
latest cables that support High Speed HDMI.
GG
HDMI Audio Supported Format: Dolby Digital (32KHz,
44.1KHz, 48KHz), Linear PCM (32KHz, 44.1KHz, 48KHz)
