Composite (RCA) Connection
HDMI Connection

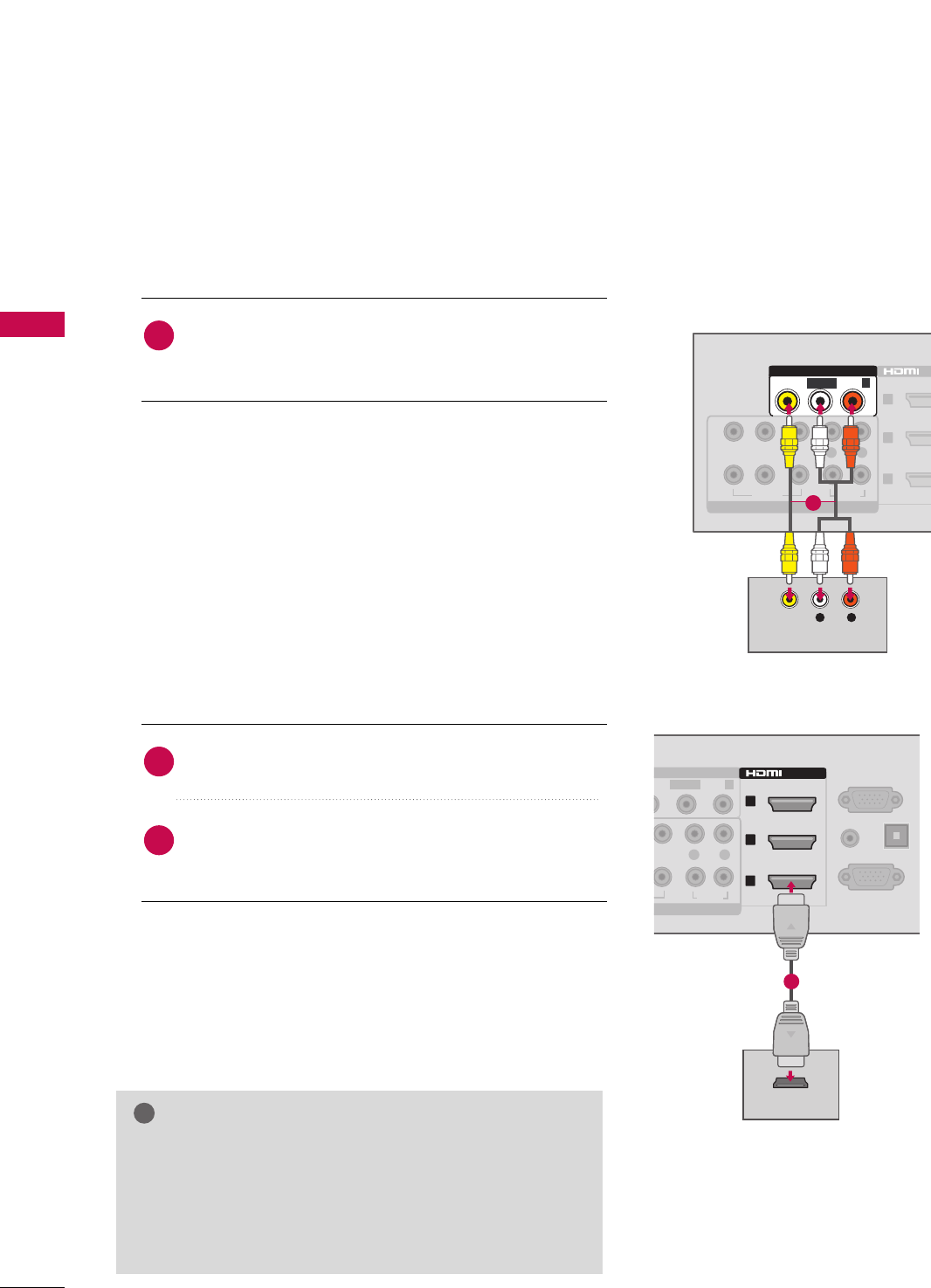

Connect the AAUUDDIIOO/VVIIDDEEOO jacks between TV and
DVD. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red).
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select the AAVV11 or AAVV22 input source on the TV using the
IINNPPUUTT button on the remote control.
■
Refer to the DVD player's manual for operating instructions.
1
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINN 11,, 22, 33 or HHDDMMII 44 jack on the TV.
No separated audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■
Select the HHDDMMII11,, HHDDMMII22,, HHDDMMII33 or HHDDMMII44 input
source on the TV using the IINNPPUUTT button on the remote
control.
■
Refer to the DVD player's manual for operating instructions.
2
1
GG
If an HDMI cables doesn’t support High Speed HDMI, it
can cause flickers or no screen display. In this case use the
latest cables that support High Speed HDMI.
GG
HDMI Audio Supported Format: Dolby Digital (32KHz,
44.1KHz, 48KHz), Linear PCM (32KHz, 44.1KHz, 48KHz)
