A-6 Programming Instructions

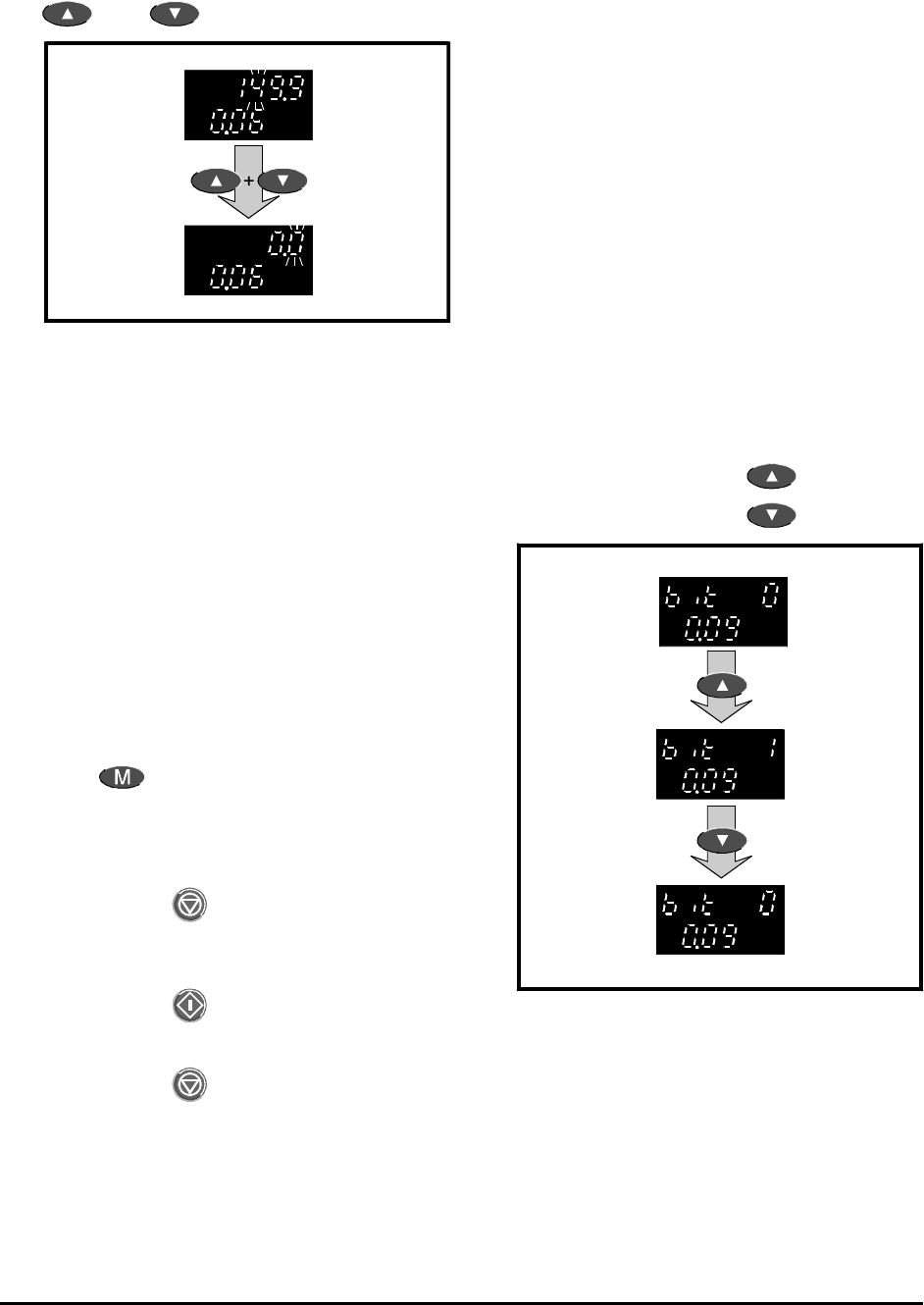

Setting the value at zero
1. Momentarily press at the same time:
and
Bench-testing? Return to default value
If you have followed this procedure while
bench-testing the Drive, return the value to 150
before returning the display to
Parameter mode.
A.8 Saving new
parameter-values
Use the following procedure to save new
parameter-values. The new values will then apply
each time the
AC supply is subsequently applied to
the Drive. If new parameter-values are not saved,
the previously saved (or default) values will apply
each time the
AC supply is applied to the Drive.
1. Set parameter 0.00 at 1000.
2. Press
. The display returns to Parameter
mode. Do not press any keys within eight
seconds; the display then enters Status mode.
3. To reset the Drive when it is stopped, press:
To reset the Drive when it is running, press and
hold...
...then press:
Release both keys at the same time.
The new parameter-value(s) are now saved.
A.9 Flashing and non-flashing
digits
When the display is in Edit mode, the flashing of a
digit indicates that the value of the digit can be
changed. If no digits flash, the parameter cannot be
edited because it is read-only (or protected).
A.10 Negative values
When the value of a bipolar variable parameter is
negative, a minus sign appears at the left of the
displayed value.
A.11 Changing the setting of a
bit parameter
When a bit parameter is selected and Edit mode
entered, the display appears as shown below. bit
appears at the left of the upper display. 0 or 1 is
displayed at the right.
When 0 is displayed, press
to select 1.
When 1 is displayed, press
to select 0.
