2.8 PS/2 Keyboard and Mouse Connector (CN11 and
CN33)

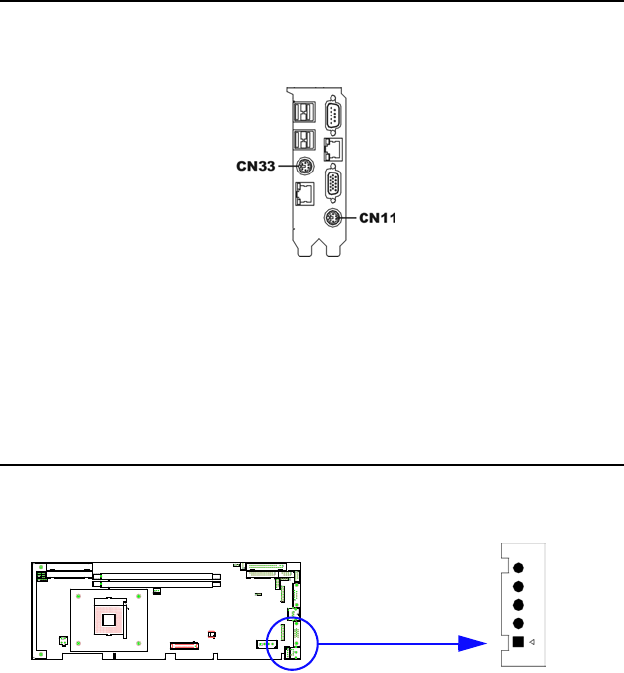

Two 6-pin mini-DIN connectors (CN11 and CN33) on the card mounting
bracket provide connection to a PS/2 keyboard and a PS/2 mouse, respec-
tively. CN11 can also be connected to an adapter cable (P/N:
1700060202, available from Advantech) for connecting to both a PS/2
keyboard and a PS/2 mouse.
2.9 External Keyboard Connector (CN12)
In addition to the PS/2 mouse/keyboard connector on the PCA-6005's
rear plate, there is also an extra onboard external keyboard connector.
This gives system integrators greater flexibility in designing their sys-
tems.
CN12
