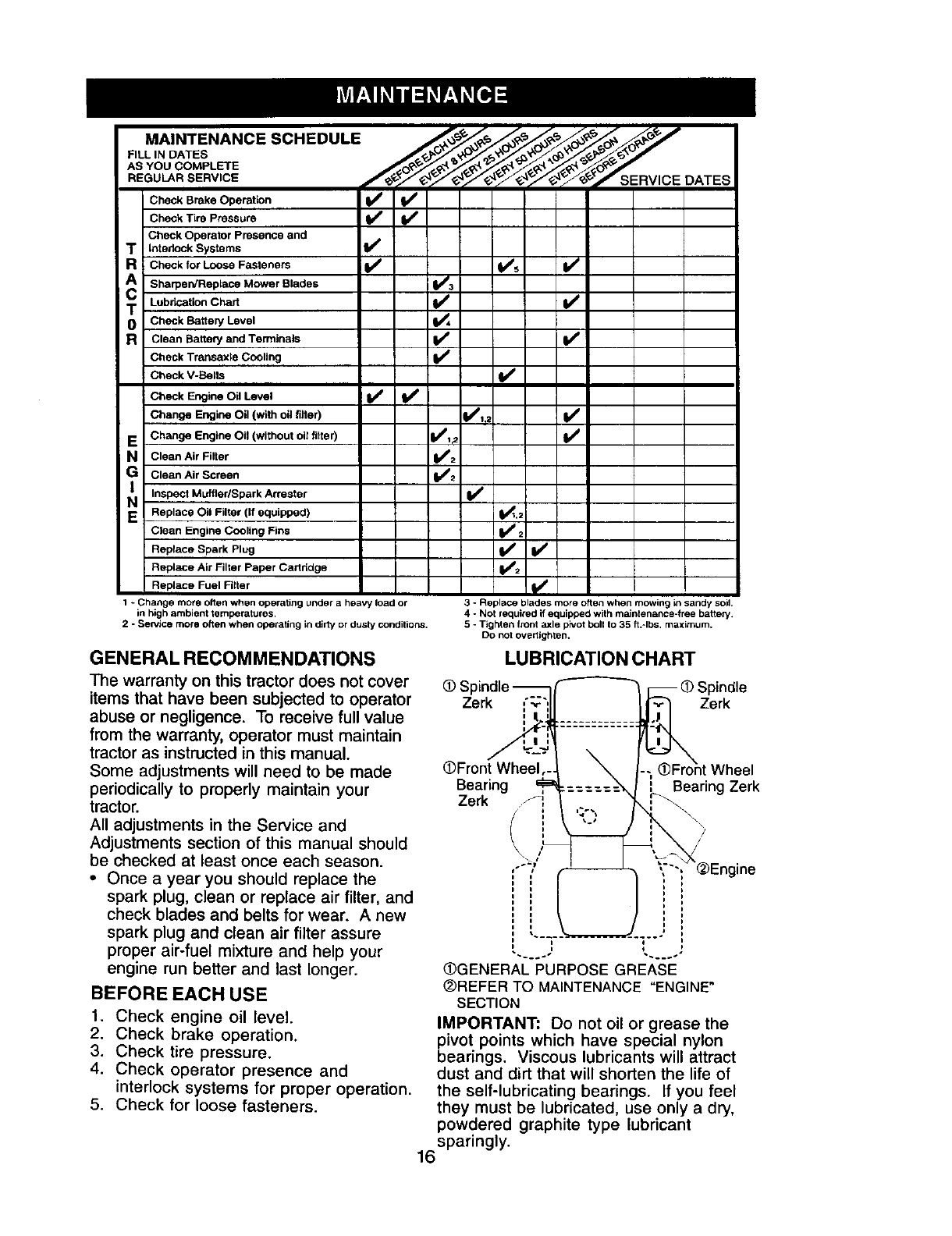

MAINTENANCE SCHEDULE _ ,_,_ _ ,_'=_ _
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check Brake Operation
Check Tire Pressure
Check Operator Presence and
T Interlock Systems
R Check for Loose Fasteners
A SharpeldReplace Mower Blades
T Lubdc,aUon Chart
0 Check Battery Level
R Clean Battery and Terminals
Check Transaxle Cooling
Check V-Belts
i Check Engine Oil Level
Change Engine Oil (with oil filter)
E ChangeEngine Oil (without oil fitter)
N Clean Air Filter
G Clean Air Screen
NI Inspect Muffler/Spark An'ester
E Replace Oil Filter (If equipped)
Clean Engine Cooling Fins
Replace Spark Plug
Replace Air Filter Paper Cartridge
Replace Fuel Filter
1 * Change more often when operating under a heavy load or
in high ambient temperatures.
2 - Service more often when operating in dirty or dusty condition,s.
_' I/, v'
v"
i/
I/ l/
i/,,2 I/
_t,_
I
v_ !
3 -Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free batten/.
5 - Tighten front axle pivot bolt to 35 f1,*lbs, maximum,
DO not overtlghten,
GENERAL RECOMMENDATIONS
The warranty on this tractor does not cover
items that have been subjected to operator
abuse or negligence. To receive full value
from the warranty, operator must maintain
tractor as instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your
tractor.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
• Once a year you should replace the
spark plug, clean or replace air filter, and
check blades and belts for wear. A new
spark plug and clean air filter assure
proper air-fuel mixture and help your
engine run better and last longer.
BEFORE EACH USE
1. Check engine oil level.
2. Check brake operation.
3. Check tire pressure.
4. Check operator presence and
interlock systems for proper operation.
5. Check for loose fasteners.
LUBRICATION CHART
_sI
Zerk Zerk
OFront Wheel,- Wheel
Bearing I Bearing Zerk
Zerk
( "
//
I"" gme
I "-3
,. , , ÷.
OGENERAL PURPOSE GREASE
(_REFER TO MAINTENANCE "ENGINE"
SECTION
IMPORTANT: DO not oil or grease the
pivot points which have special nylon
bearings. Viscous lubricants will attract
dust and dirt that will shorten the life of
the self-lubricating bearings. If you feel
they must be lubricated, use only a dry,
powdered graphite type lubricant
16sparingly -
