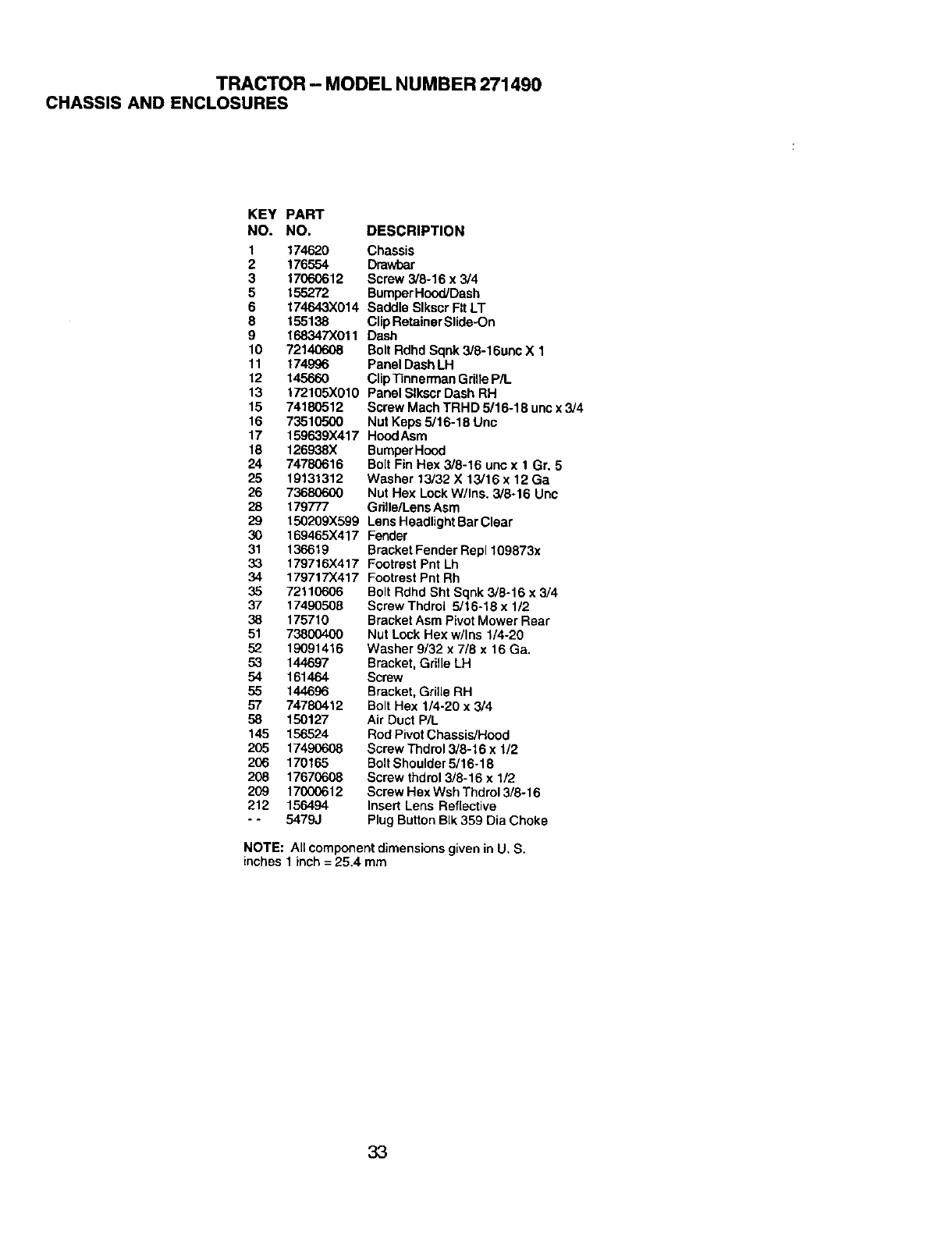

TRACTOR - MODEL NUMBER 271490
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174620 Chassis
2 176554 Drewbar
3 17060612 Screw 3/8-16 x3/4
5 155272 BumperHood/Dash
6 174643X014 Saddle Slkser Fit LT
8 155138 ClipRetainerSlide-On
9 168347X011 Dash
10 72140608 Bolt Rdhd Sqnk3/8-16unc X 1
11 174996 Panel DashLH
12 145660 Clip"13nnermanGrilleP/L
13 172105X010 Panel SlkscrDash RH
15 74180512 Screw Mach TRHD 5/15-18 unc x3/4
16 73510500 Nut Keps 5/16-18 Unc
17 159639X417 HoodAsm
18 126938X BumperHood
24 74780615 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
25 19131312 Washer 13/32 X 13/16 x 12 Ga
25 73680600 Nut Hex LockW/Ins. 3/8-16 Unc
28 179777 Gdlle/LensAsm
29 150209X599 LensHeadlightBar Clear
30 159465X417 Fender
31 136619 Bracket Fender Repl 109873x
33 179716X417 Footrest Pnt Lh
34 179717X417 Footrest Pnt Rh
35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x3/4
37 17490508 Scraw Thdroi 5/15-18 x 1/2
38 175710 Bracket Asm PivotMower Rear
51 73800400 Nut Lock Hex w/Ins 1/4-20
52 19091416 Washer 9/32 x 7/8 x 16 Ga.
53 144697 Bracket, Grille LH
54 161464 Screw
55 144696 Bracket, Grille RH
57 74780412 Bolt Hex 1/4-20 x 3/4
58 150127 Air Duct P/L
145 156524 Rod Pivot Chassis/Hood
205 17490608 Screw Thdrol 3/8-16 x 1/2
206 170165 Bolt Shoulder 5/16-18
208 17670608 Screw thdrol 3/8-16 x 1/2
209 17000612 Screw Hex Wsh Thdrol 3/8-16
212 156494 Insert Lens Reflective
- - 5479J Plug Button BIk 359 Dia Choke
NOTE: All componentdimensions givenin U. S.
inches 1inch = 25.4 mm
33
