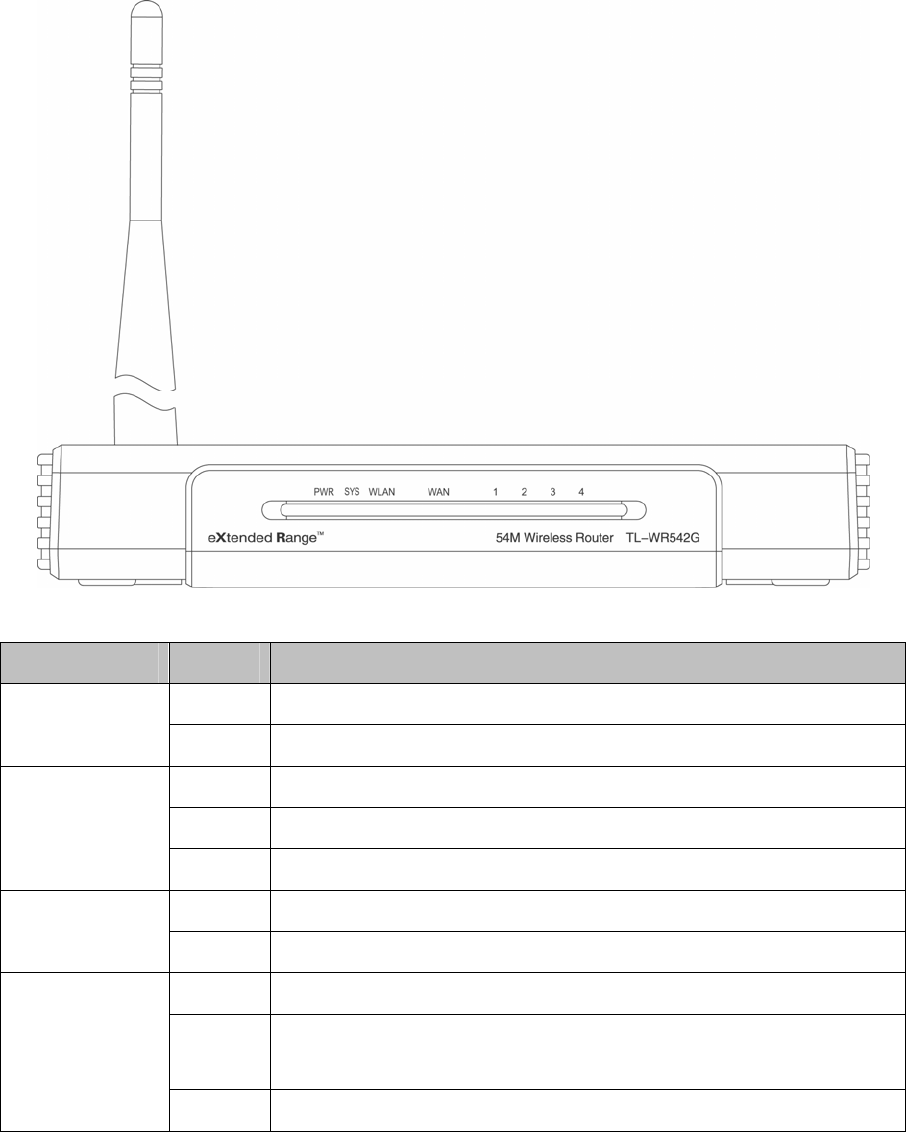

Figure 1-1 Front Panel sketch
Name Status Indication
Off No Power
PWR
On Power on
Off The Router has an error
On The Router is initializing
SYS
Flashing The Router is working properly
Off The Wireless function is disabled
WLAN
Flashing The Wireless function is enabled
Off There is no device linked to the corresponding port
On
There are devices linked to the corresponding ports but no data
transmitted or received.
WAN/1-4 (LAN)
Flashing Sending or receiving data over corresponding port
Table 1-1 The LEDs description
1.3.2 The Rear Panel
The following parts are located on the rear panel (View from left to right).
¾ AC power socket:
Please use the power adapter which is supplied with the TL-WR542G
54Mbps Wireless Router only, the use of a different adapter may result
in product damage.
