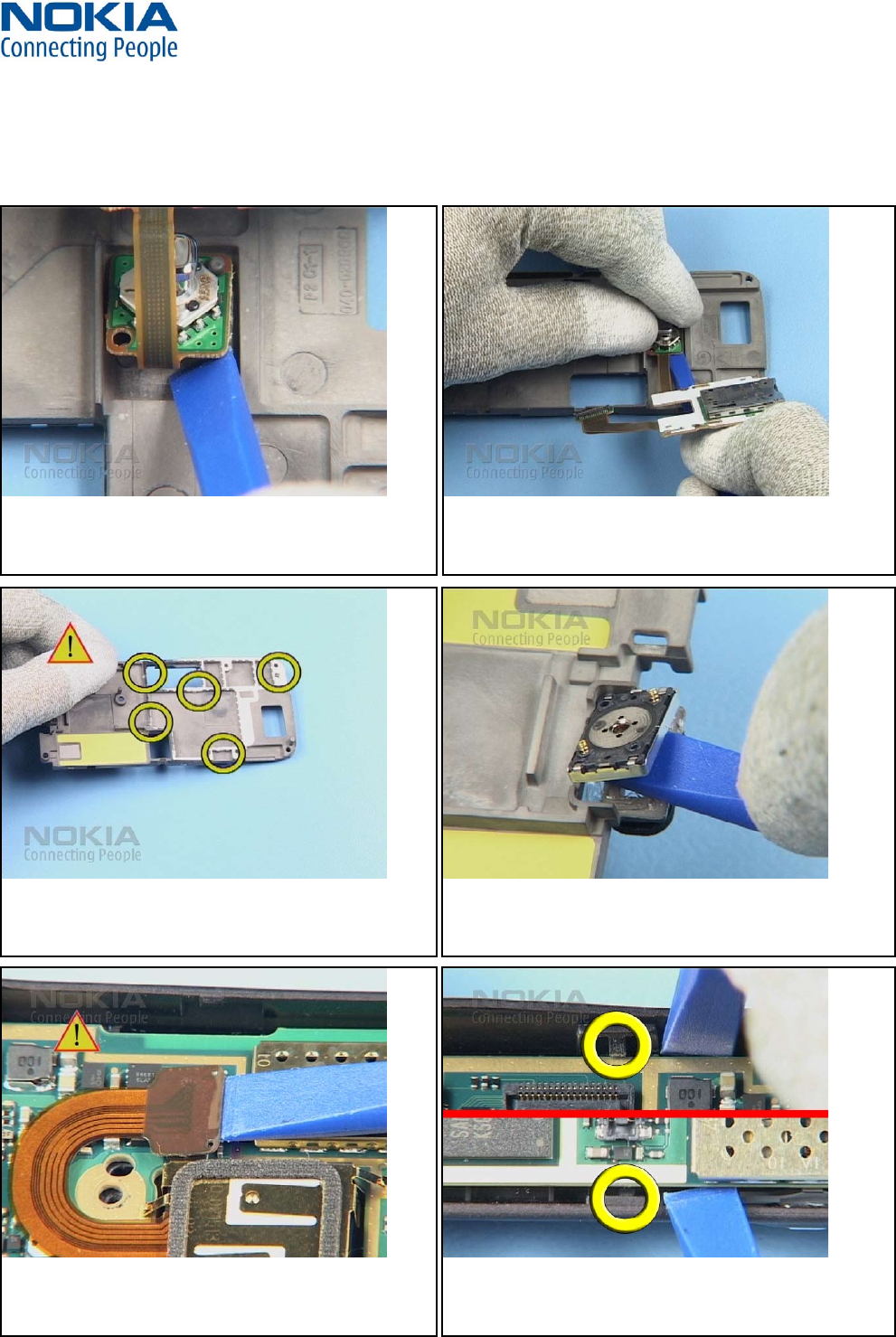

31. Place the UI MODULE over the JOYSTICK HAT and carefully
lever out the MODULE from the UI FRAME with SS-93.
32. Move the UI MODULE to the primary position and then
remove the UI MODULE by using the SS-93 as a support.
33. Gently, unlock the BASEBAND GASKET as shown and remove
it from the UI FRAME.
34. Replace the EARPIECE when necessary. Keep in mind to
remove the EARPIECE ADHESIVE residues before assembling a
new EARPIECE with a new EARPIECE ADHESIVE.
35. Disconnect the MAIN CAMERA from the ENGINE MODULE and
remove it carefully from its housing.
36. The ENGINE MODULE is snapped to the B-COVER with two
snaps. Unlock the ENGINE MODULE with the SS-93 ...
