Configuring Switch Information 281
3
Define the relevant fields.
4
Click
Apply Changes
. The IP based protocol is defined, and the device is updated.
Displaying the ACEs Associated with IP based ACLs
1
Open the
Network Security - IP Based ACL
page.
2
Click
Show All.
The
ACEs Associated with IP-ACL
opens.

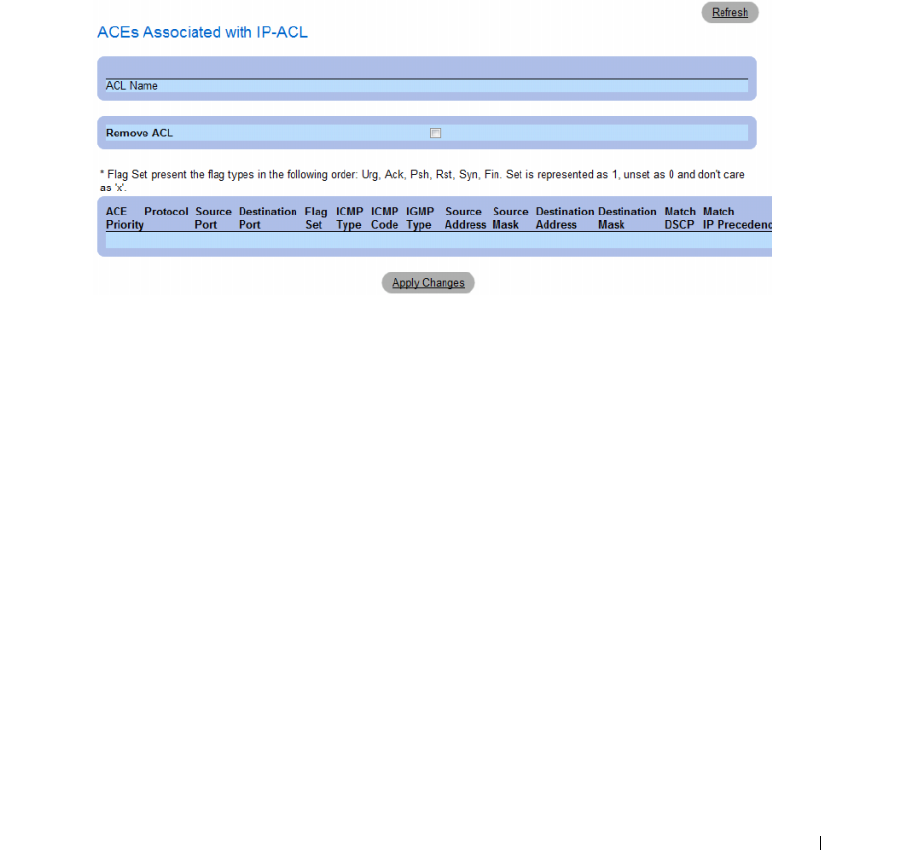

Figure 7-11. ACEs Associated with IP-ACL
Removing an IP based ACL
1
Open the
Network Security - IP Based ACL
page.
2
Click
Show All.
The
ACEs Associated with IP-ACL Table
opens.
3
Check the
Remove ACL
checkbox.
4
Click
Apply Changes
.
Removing an IP based ACE
1
Open the
Network Security - IP Based ACL
page.
2
Click
Show All.
The
ACEs Associated with IP-ACL Table
opens.
3
Check the
Remove
checkbox next to an ACE.
4
Click
Apply Changes
.
