17
How to deploy the Dell M8024 family of switches in a Cisco Nexus network

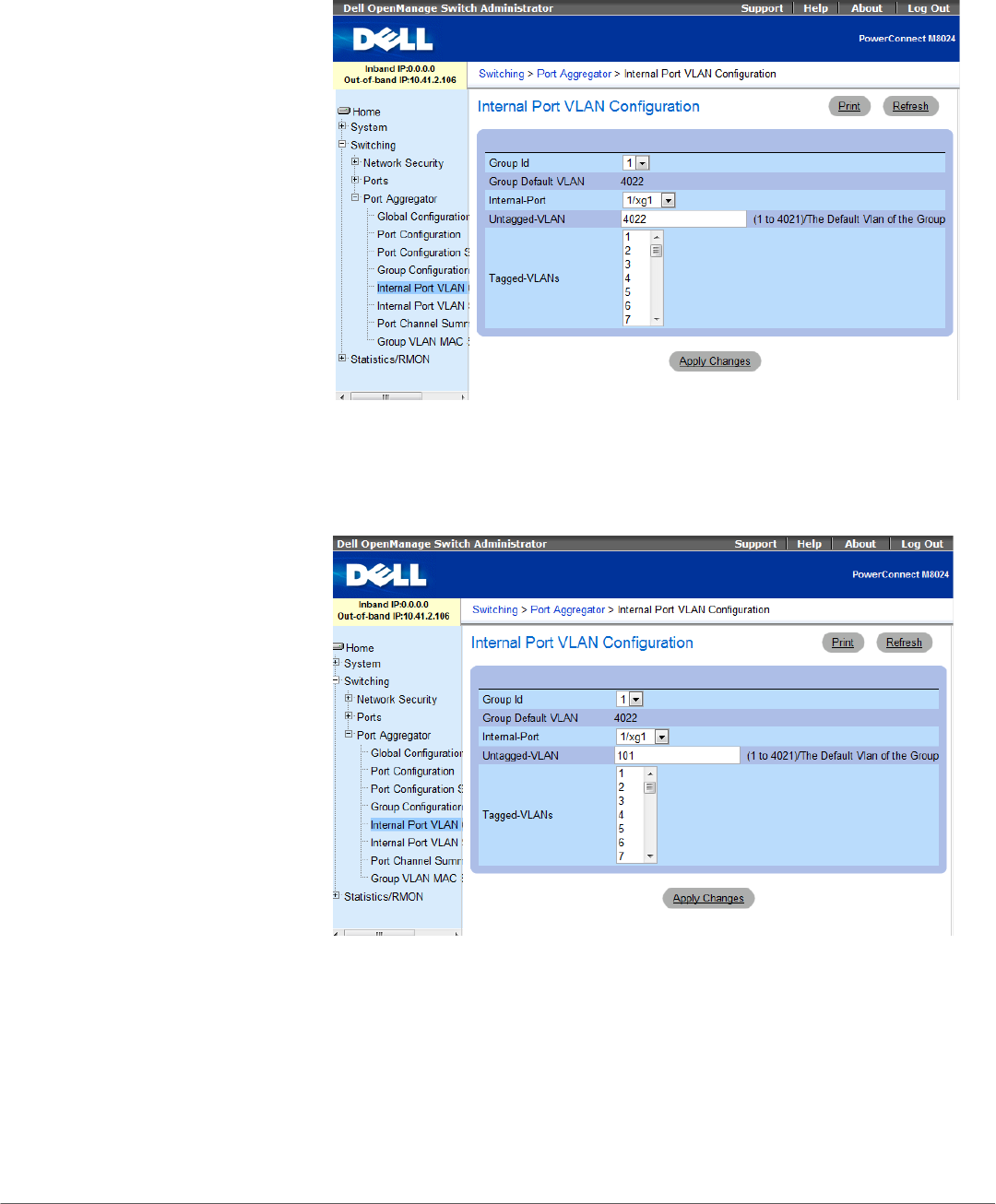

Figure 14: Internal Port VLAN Configuration on the Dell PowerConnect M8024
switch.
6. In the Untagged-VLAN textbox, write a VLAN (we chose 101), and
left-click Apply Changes (see Figure 15.)
Figure 15: Selecting a VLAN in Internal Port VLAN Configuration on the Dell
PowerConnect M8024 switch.
On the Cisco Nexus 5010 switch
1. Log into the switch.
2. Type the following commands into the switch (see Figure 16):
configure terminal
feature lacp
vlan 101
