Installing the mSATA SSD
1. Place the mSATA SSD card in its slot in the computer.
2. Tighten the screw to secures the mSATA SSD card to the computer.
3. Install:
a. base cover
b. battery
4. Follow the procedures in After Working Inside Your computer.
Removing the WLAN Card
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. battery
b. base cover

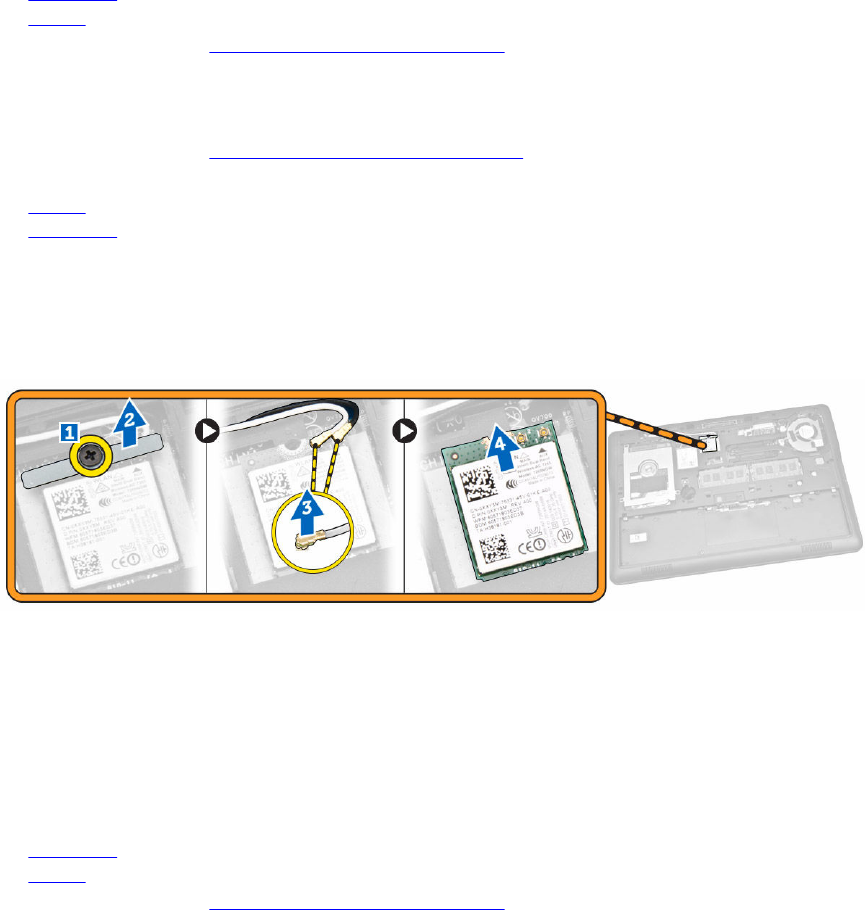

3. Perform the following steps as shown in the illustration:
a. Remove the screw that secures the WLAN card to the computer [1].
b. Remove the metal bracket that secures the WLAN cables [2].
c. Disconnect the WLAN cables from their connectors on the WLAN card [3].
d. Remove the WLAN card from the computer [4].
Installing the WLAN Card
1. Place the WLAN card into its slot on the computer.
2. Connect the WLAN cables to their connectors on the WLAN card.
3. Replace the metal bracket on the WLAN card.
4. Tighten the screw to secure the WLAN card to the computer.
5. Install:
a. base cover
b. battery
6. Follow the procedures in After Working Inside Your computer.
