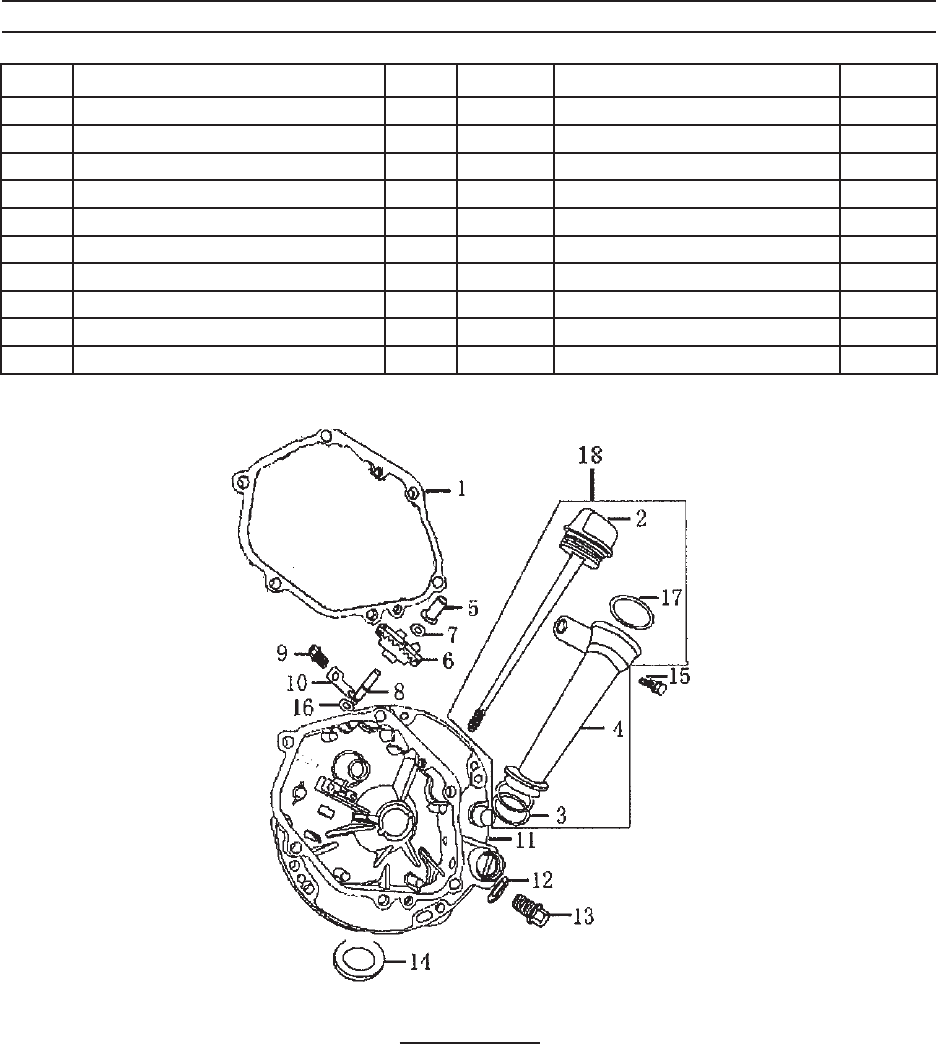

PARTS LIST/DIAGRAM - CRANKCASE SUMP
Part Description Q’ty Part Description Q’ty
1 Crankcase Gasket 1 11 Sump, Crankcase 1
2 Dipstick 1 12 Washer 1
3 Seal 2 13 Drain Plug 1
4 Filler 1 14 Oil Seal, Crankshaft (25x38x7) 1
5 Sliding Sleeve 1 15 Bolt (M6x32) 1
6 Drive Gear, Regulator 1 16 Washer, Drive Gear 1
7 Washer 1 17 Seal (II) 1
8 Regulating Shaft 1 18 Dipstick with Seal 1
9 Bolt (M6x12) 1
10 Clamp, Regulating Shaft 1
IMPORTANT
When ordering parts from the above Parts List, make sure to specify the following:
The PART NUMBER listed to the left of the part description.a.
The NAME OF THE PARTS LIST from which you are ordering (located at the top of this page).b.
