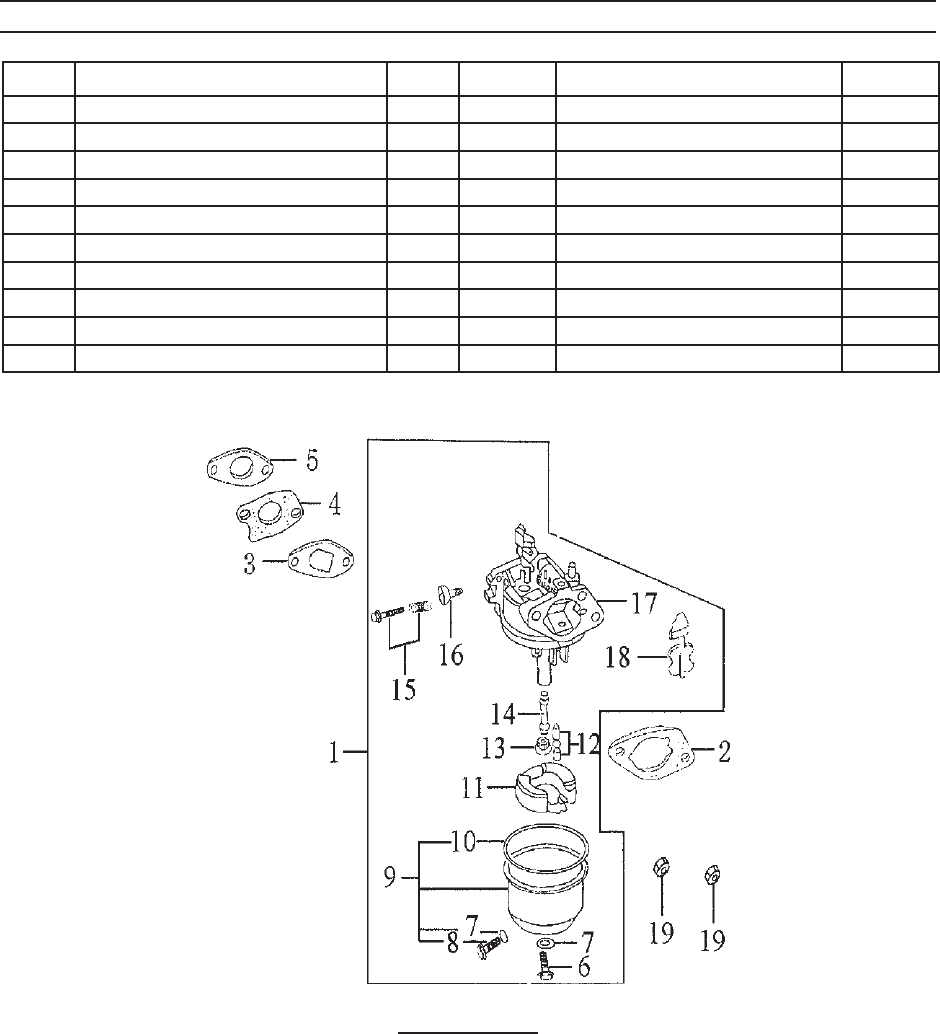

PARTS LIST/DIAGRAM - CARBURETOR
Part Description Q’ty Part Description Q’ty
1 Carburetor 1 11 Float 1
2 Air Cleaner Gasket 1 12 Float Needle Valve 1
3 Carburetor Gasket 1 13 Main Jet 1
4 Heat Insulator 1 14 Main Jet Pipe 1
5 Inlet Gasket 1 15 Mixture Adjustment Screw 1
6 Float Chamber Drain Screw 1 16 Idle Adjustment Screw 1
7 Washer 2 17 Carburetor Mixture Chamber Body 1
8 Screw 1 18 Choke 1
9 Float Chamber 1 19 Nut (M6) 2
10 Float Chamber Gasket 1
IMPORTANT
When ordering parts from the above Parts List, make sure to specify the following:
The PART NUMBER listed to the left of the part description.a.
The NAME OF THE PARTS LIST from which you are ordering (located at the top of this page).b.
