User’s Manual of WGSD-1022/WGSD-8000
- 145 –

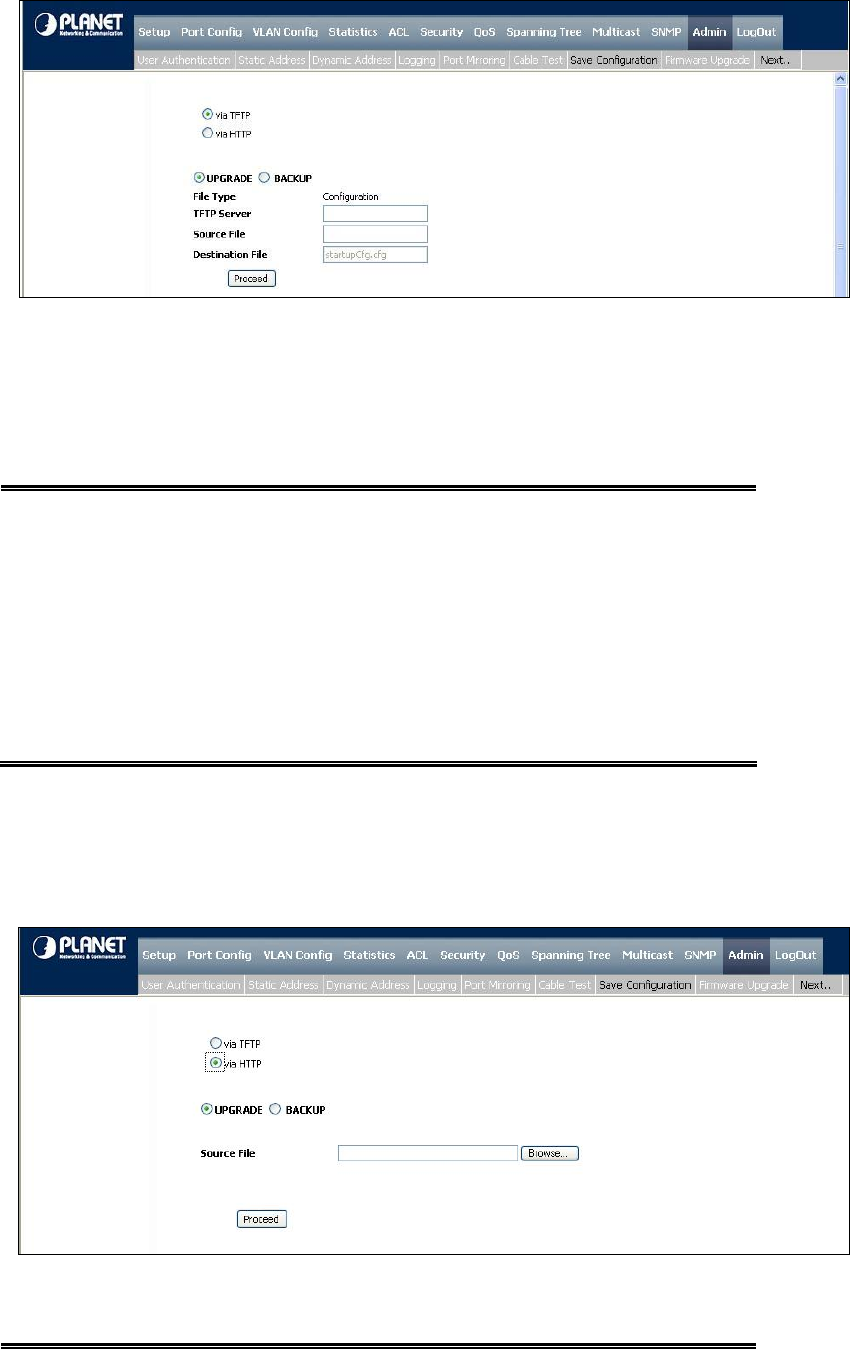

Figure 4-74 Save Configuration via TFTP
The page contains the following fields:
Via TFTP
Via TFTP Upgrade
Select this option to upgrade the switch from a file located on a TFTP
Server.
TFTP Server
The TFTP Server IP Address that contains the source file to upgrade
from.
Source File
Specifies the name of the upgrade file on the TFTP Server.
Destination File
Where specifies the name of the configuration file. The default is
StartupCfg.
Via HTTP
This HTTP Firmware Upgrade screen is used for saving configuration information using your Web browser. See figure 4-75
Figure 4-75 Save Configuration via HTTP
Upgrade
Select this option to upgrade the switch from a file on the local hard
drive.
