User’s Manual of WGSD-1022/WGSD-8000
- 67 –
1. Any packets pass through the switch will be dropped – if the Destination IP Addresses match specific Class C.
2. Any packets pass through the switch will be forwarded – if the Destination IP Addresses not match specific Class C.

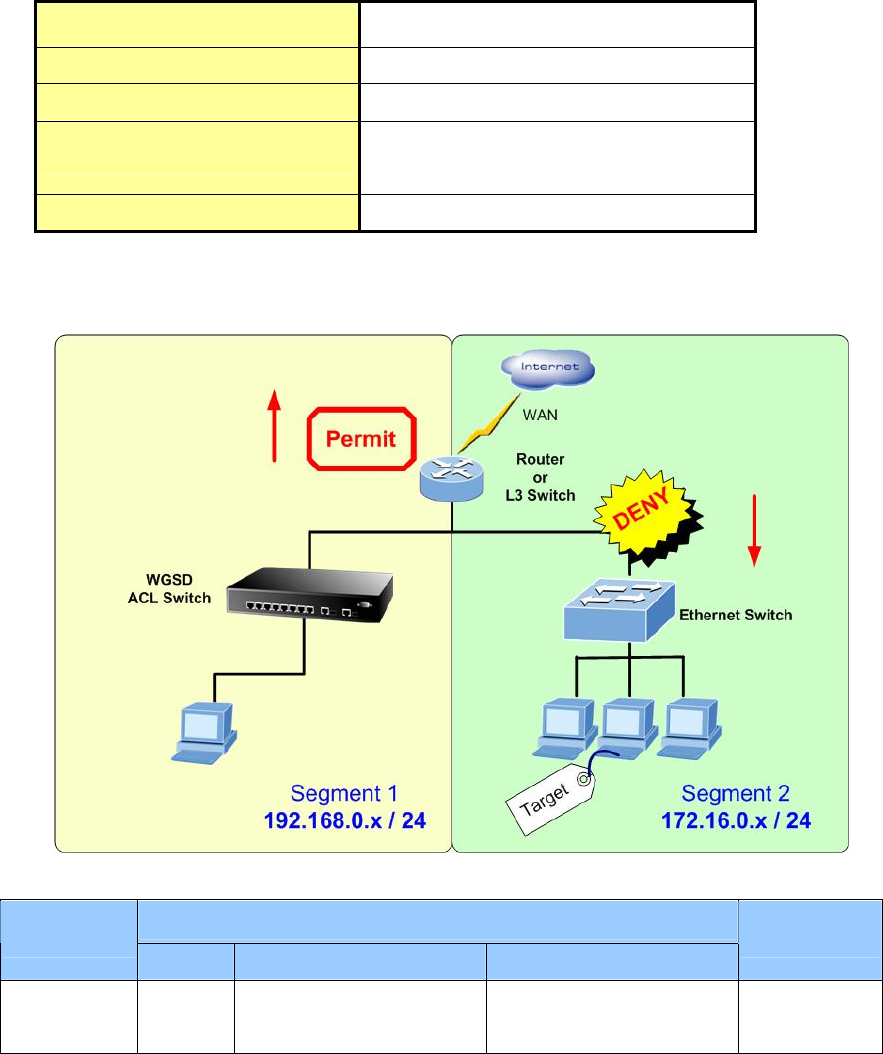

¾ Case Design:
Action DENY
Match IP
Source IP Address Any
Destination IP Address
Class C
172.16.0.0 / 255.255.255.0
Applied Interface Interface g1
¾ Device Connection and Configuration:
Stream
Target
ID Source Address Destination Address
Protocol
Any
3 Any
172.16.0.0 /
255.255.255.0
Any
The procedure as following
■ Create Deny ACL and add to list
1. [DENY Rule]: Choose “New ACL Name”, then key in “Deny-IP Destination A”. Choose “Action”—“Deny”.
(The ACL Name can de entered with other policy name)
2. [DENY Rule]: Keep the “Source IP Address” and “Wild Card Mask” be blanked.
