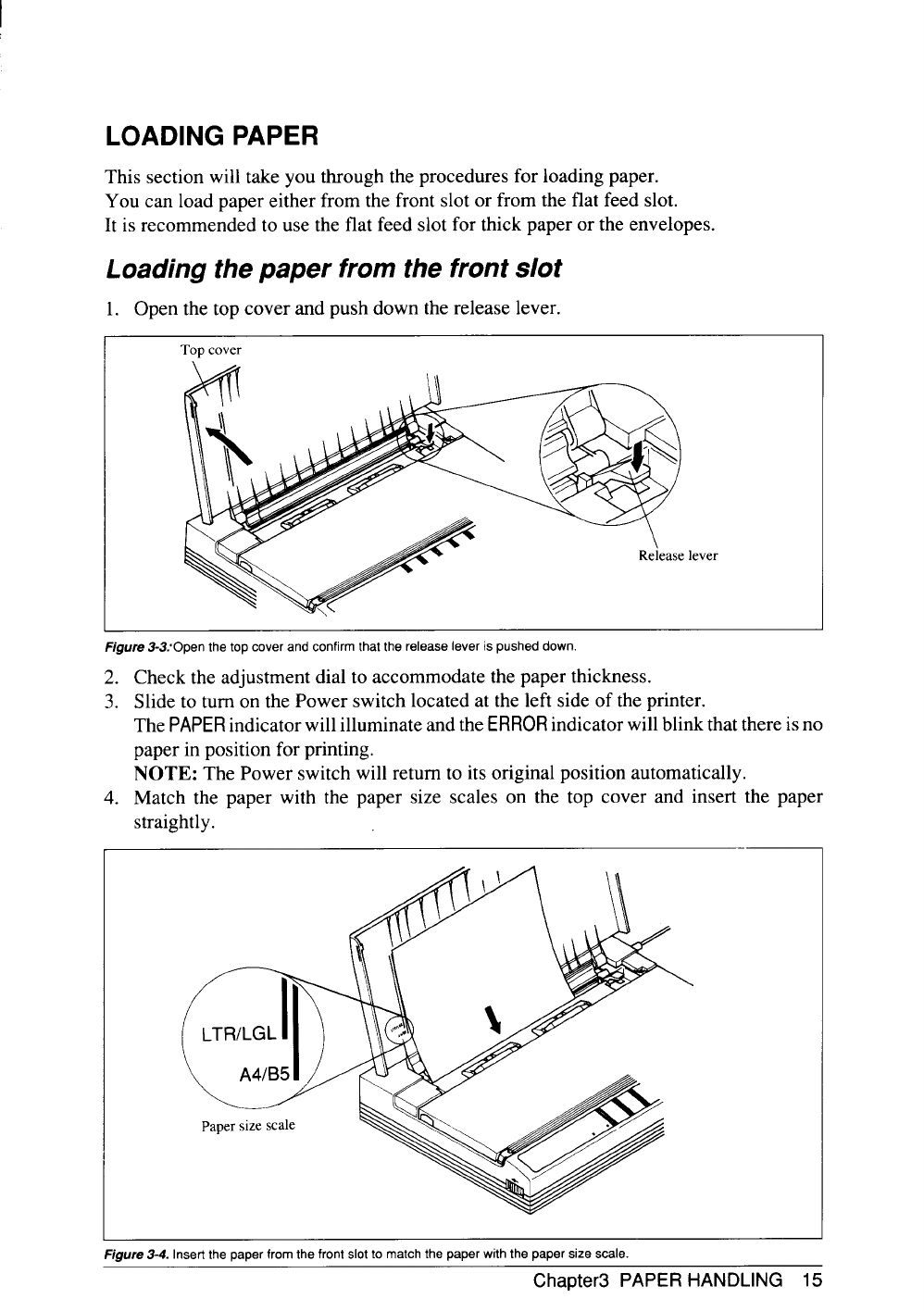

LOADING PAPER
This section will take you through the procedures for loading paper.
You can load paper either from the front slot or from the flat feed slot.
It is recommended to use the flat feed slot for thick paper or the envelopes.
Loading the paper from the front slot
1. Open the top cover and push down the release lever.
c
F 3 c c t r l p d
2. Check the adjustment dial to accommodate the paper thickness.
3. Slide to turn on the Power switch located at the left side of the printer.
The
PAPERindicator will illuminate and the indicator will blink that there isno
paper in position for printing.
NOTE: The Power switch will return to its original position automatically.
4. Match the paper with the paper size scales on the top cover and insert the paper
straightly.
F 3 I p f f s m p w p s s
Chapter3 PAPER HANDLING 15
