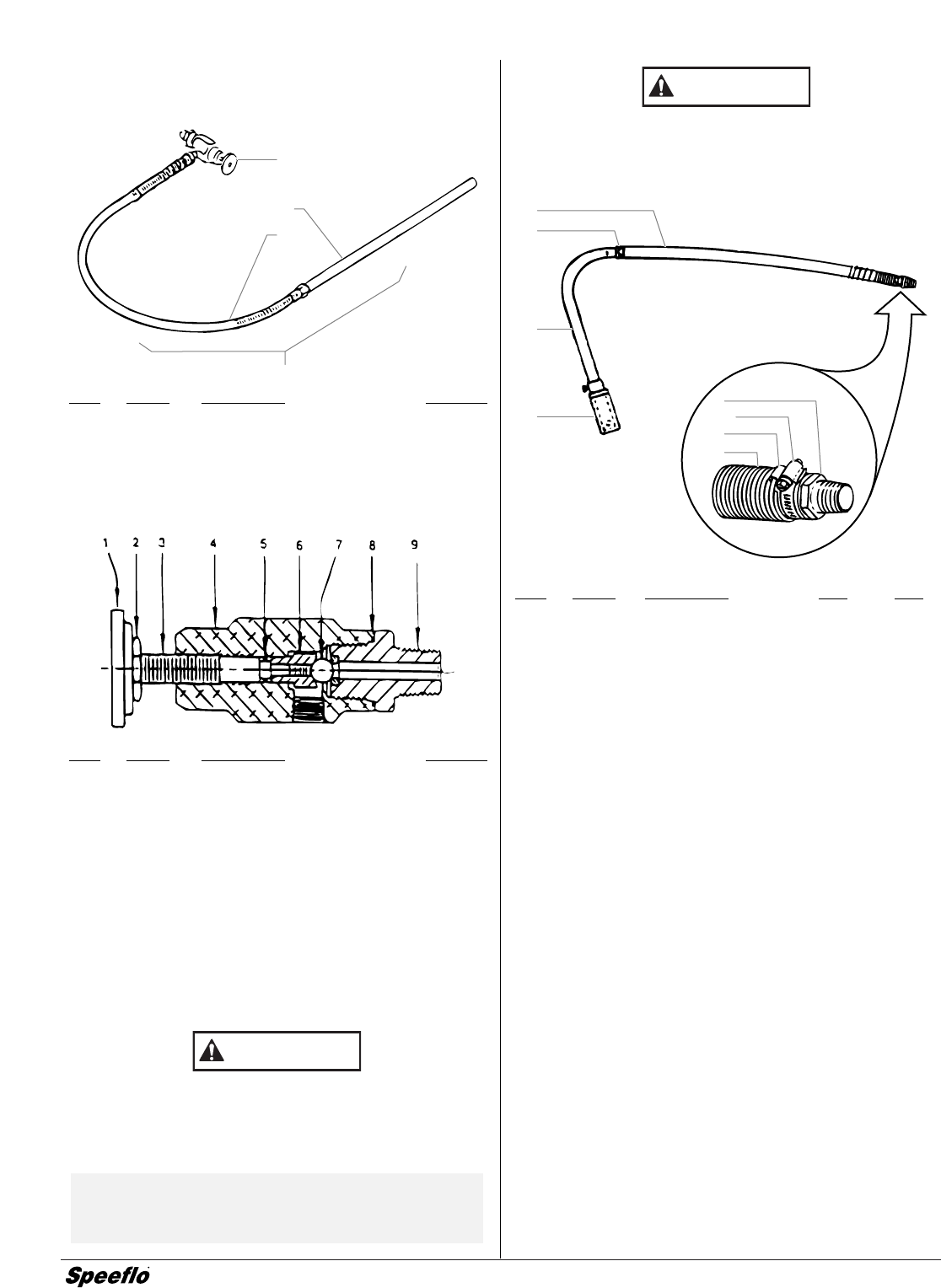

Inlet Accessories
Bleed Line Assembly with Valve (P/N 840-211)
Item Part #
Description Quantity
1 944-620 Bleed valve...............................................1
2 103-117 Tube .........................................................1
3 539-078 Hose assembly.........................................1
4 103-111 Bleed line assembly .................................1
Bleed Valve Assembly (P/N 944-620)
Item Part # Description Quantity
1 944-005 Knob.........................................................1
2 860-721 Lock nut....................................................1
3 944-023 Valve stem................................................1
4 ---------- Valve body................................................1
5 944-004 O-ring, 37)(............................................1
6 944-026 Valve stem stop........................................1
7 569-170 Ball, T.C....................................................1
8 945-003 Copper gasket..........................................1
9 944-904 Valve seat.................................................1
Service Instructions
The 944-620 Series Bleed Valve has a tungsten carbide valve
seat and should not require frequent replacement. The
tungsten carbide ball, in normal service, will last a long time
because it rotates and wears evenly. If there is leakage,
replace the ball.
Open the adjustment knob, to full counterclockwise
position before unthreading valve seat, from valve body.
If the valve stem is rotated inwardly with the ball removed,
the 37)( o-ring may require replacement. If there has
been leakage from the valve stem, the 37)( o-ring
should be replaced
NOTE: The valve stem stop must be unthreaded from
the valve stem with a socket screwdriver, then
the valve stem can be threaded out of the
valve body.
CAUTION
All non-moving threads must be assembled with Speeflo
Loctite Sealant (P/N 426-051).
Siphon Hose Assembly
103-826 103-827
Item
Part # Description Qty
. Qty.
1 420-700 Hose.................................4.5'............6.5'
2 103-679 Hose Clamp .......................2 ...............2
3 103-575 Tube...................................1
103-585 Tube.....................................................1
4 103-627 Rock Catcher .....................1 ...............1
5 194-761 Adapter ..............................1 ...............1
6 103-119 Clip.....................................1 ...............1
7 103-125 Spring.................................1 ...............1
