Status:
Activate or inactivate the entry.
List of Rules
You can view the information of the entries and edit them by the Action buttons.
The first entry in Figure 3-40 indicates: All the packets with Source IP between 192.168.0.100 and
192.168.0.199 and Destination IP between 116.10.20.28 and 116.10.20.29 will be forwarded from
WAN1 port, regardless of the port and protocol. This entry is activated d and will take effect at 8
am to 10 pm from Monday to Friday.
3.3.4.3 Link Backup
With Link Backup function, the router will switch all the new sessions from dropped line automatically
to another to keep an always on-line network.
On this page, you can configure the Link Backup function based on actual need to reduce the traffic
burden of WAN port and improve the network efficiency.
Choose the menu AdvancedLoad BalanceLink Backup to load the following page.

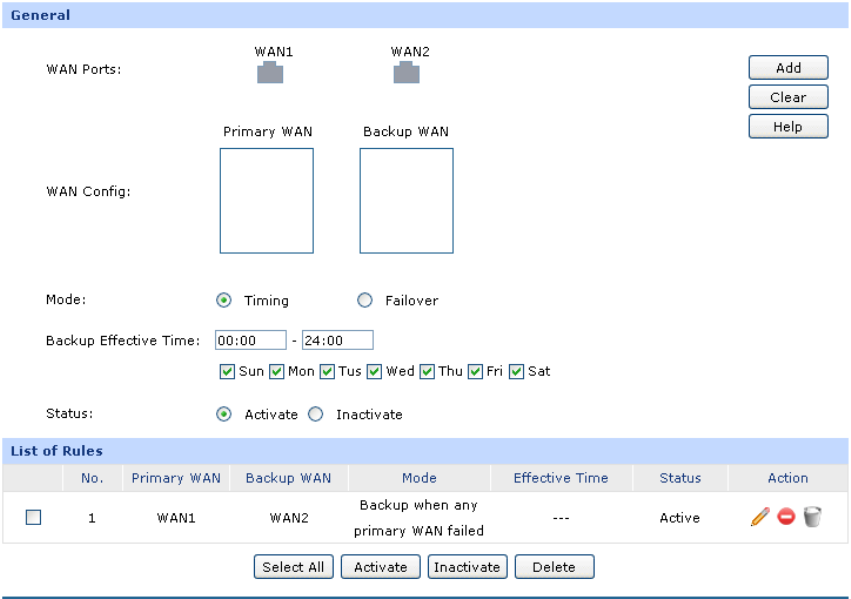

Figure 3-41 Link Backup
The following items are displayed on this screen:
-59-
