PRIMARY FLIGHT DISPLAY (PFD)
PRIMARY FLIGHT DISPLAY
Attitude Indicator
The standby mechanical Attitude Indicator in your aircraft is either a Ground
Pointer or a Roll Pointer confi guration. The GDU 620 Attitude Indicator has been
confi gured in either a Ground Pointer or a Roll Pointer confi guration to match
the confi guration of your aircraft’s standby Attitude Indicator.
In an aircraft with an Attitude Indicator that has a Ground Pointer, the pointer
above the roll scale shifts with the roll or bank angle of the aircraft to keep the
Roll Scale Zero Pointer pointing towards the ground.
Roll Pointer
Roll Scale Zero Pointer
Roll Scale

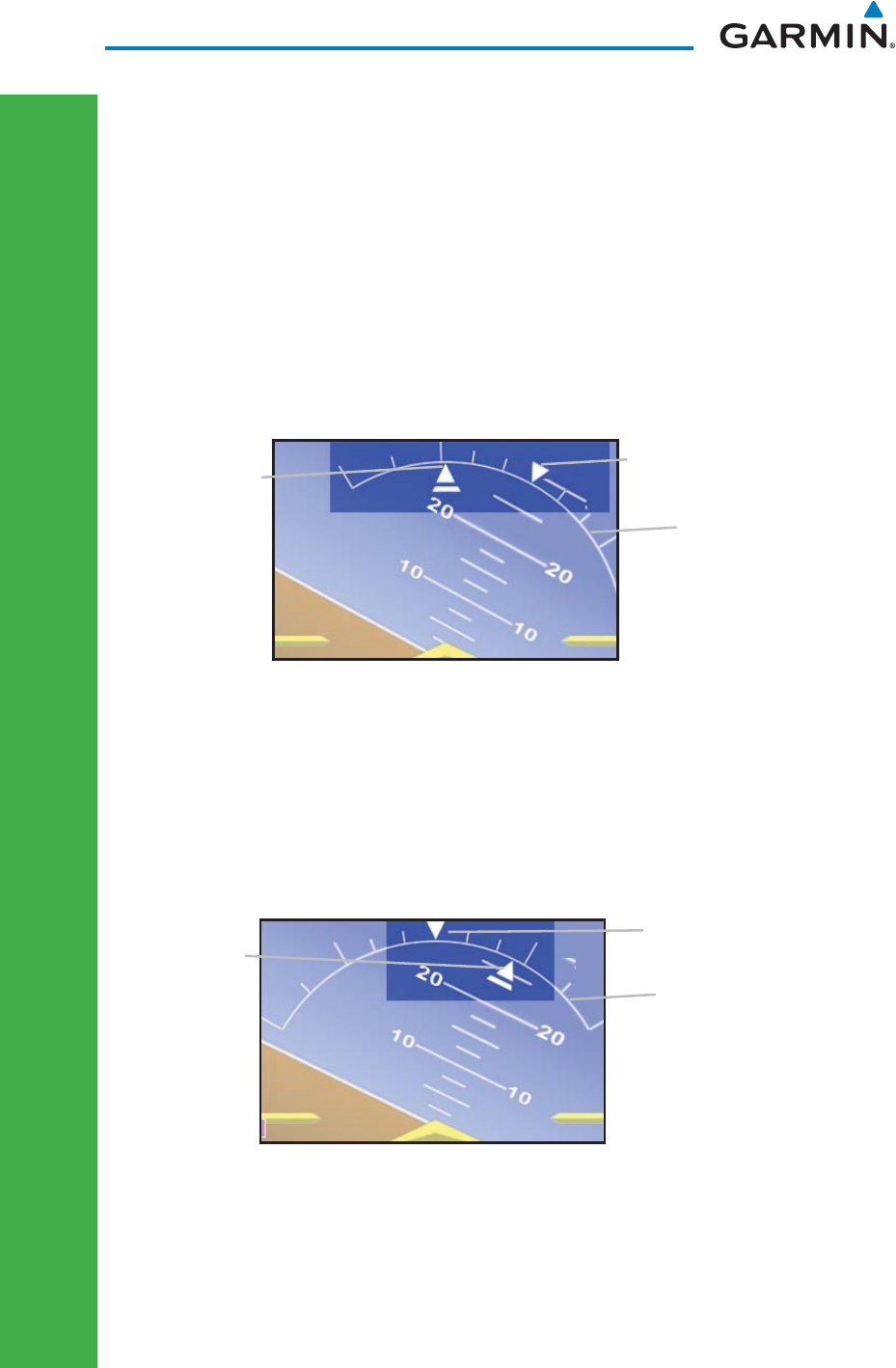

G500 Attitude Indicator with a Ground Pointer Confi guration in a Left Turn
In an aircraft with an Attitude Indicator that has a Sky Pointer, the pointer
below the roll scale shifts with the roll or bank angle of the aircraft to keep the
Roll Pointer pointing towards the sky.
Roll Scale
Roll Scale Zero Pointer
Roll Pointer
G500 Attitude Indicator with a Sky Pointer Confi guration in a Left Turn
