49
G500 Cockpit Reference Guide
190-01102-03 Rev B
AUX GROUP
AUX GROUP: SYSTEM STATUS PAGE

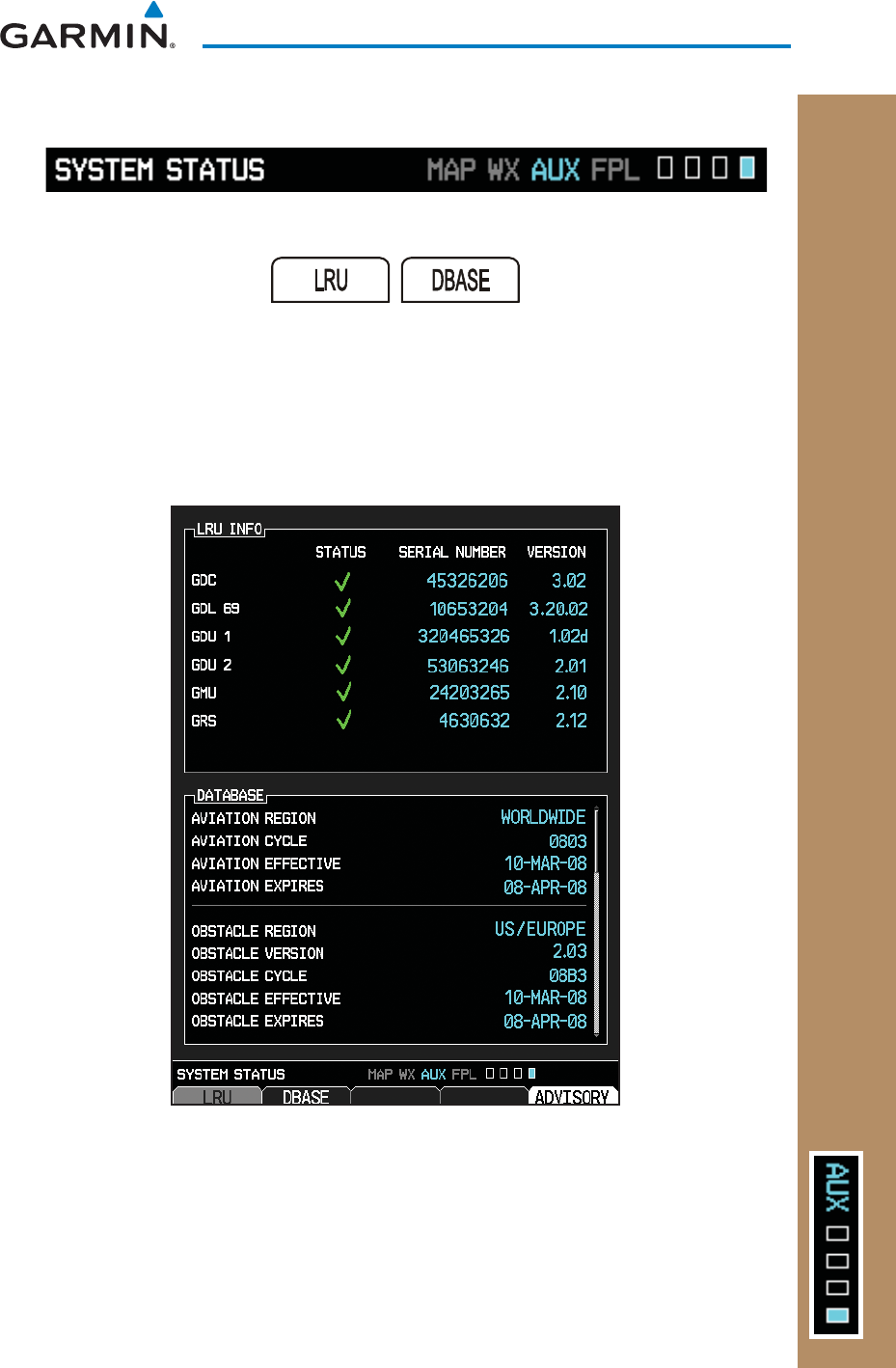

System Status Page
Soft Keys Found on System Status Page
The System Status page of the AUX Page group shows the status, serial number,
and version of LRUs as well as the effectivity information. There are no menu
options. In the LRU Status column, a green check means the unit is present and
operating properly, while a red X indicates an absence or failure. This page is
for informational purposes and there are no items that are able to be modiļ¬ ed.
System Status Page
While viewing the System Status page of the Aux Page Group, press the 1) LRU
soft key and turn the small MFD knob to scroll through the status, serial
number and version of each LRU. Press the small MFD knob to exit.
Press the 2) DBASE soft key and turn the small MFD knob to view the list of the
databases loaded into the GDU 620. Press the small MFD knob to exit.
