GNC 420(A) Pilot’s Guide and Reference
9-31
SECTION 9
AUX PAGES
Setup 2 Page: Data Field Configuration
Configuring the Data Fields:
1) Select ‘Data Field Configuration’ from the
Setup 2 Page, using the steps described at the
beginning of this section. The flashing cursor
highlights the data field (Figure 9-79).

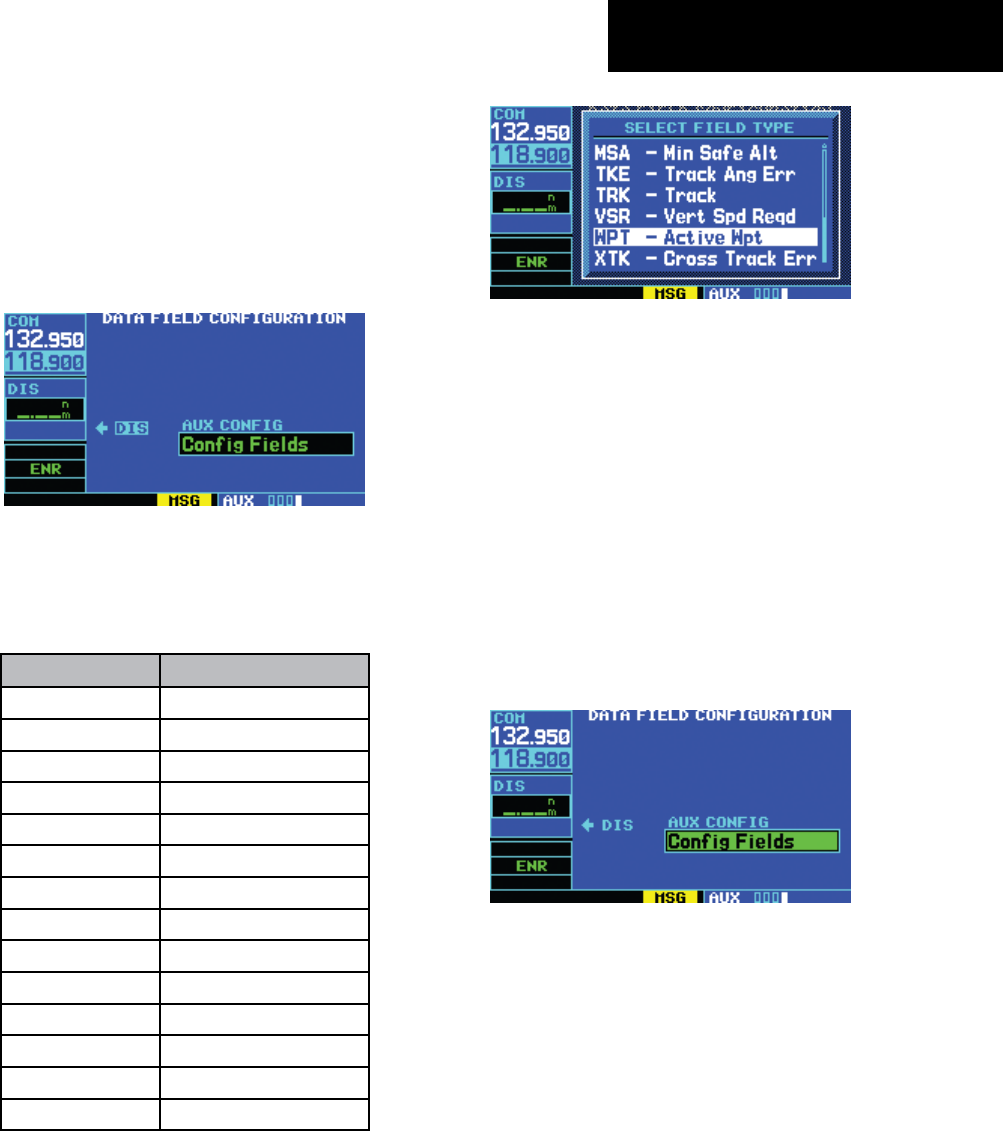

Figure 9-79 Upper Data Field Highlighted
2) Turn the small right knob to select the desired
data type (Figure 9-80). The available data
options are listed in Table 9-3.
Abbreviation Data Type
BRG Bearing
CTS Course To Steer
DIS Distance
DTK Desired Track
ESA Enroute Safe Altitude
ETA Estimated Time of Arrival
FLOW Total Fuel Flow
GS Ground Speed
MSA Minimum Safe Altitude
TKE Track Angle Error
TRK Track
VSR Vertical Speed Required
WPT Active Waypoint
XTK Cross Track Error
Table 9-3
Figure 9-80 Select Field Type Window
3) Press the ENT Key to accept the data type.
4) Press the small right knob to remove the
cursor and return to the Setup 2 Page.
Setup 2 Page: Auxiliary Configuration
Configuring the Auxiliary Data Field:
1) Select ‘Data Field Configuration’ from the
Setup 2 Page, using the steps described at the
beginning of this section. Turn the large right
knob to highlight the Auxiliary Configuration
Field (Figure 9-81).
Figure 9-81 AUX CONFIG Field Highlighted
190-00140-20 Rev. K
