• Auto Request - This eld is used to set the
time interval for the system to automatically
send the position. The time options are OFF,
10 min, 15 min, 20 min, 30 min, 45 min, and
1 hr. When an auto request time is selected,
the first report is sent after the specified
time has elapsed from when the field was
set (as opposed to immediately sending a
report). Note that in order to take advantage
of EchoFlight’s Automatic Weather Delivery
(AWD) service, the time interval must be set
to 15 minutes.
• Manual Send? - This eld is used to send out a
current single position report (Figure 11-41).

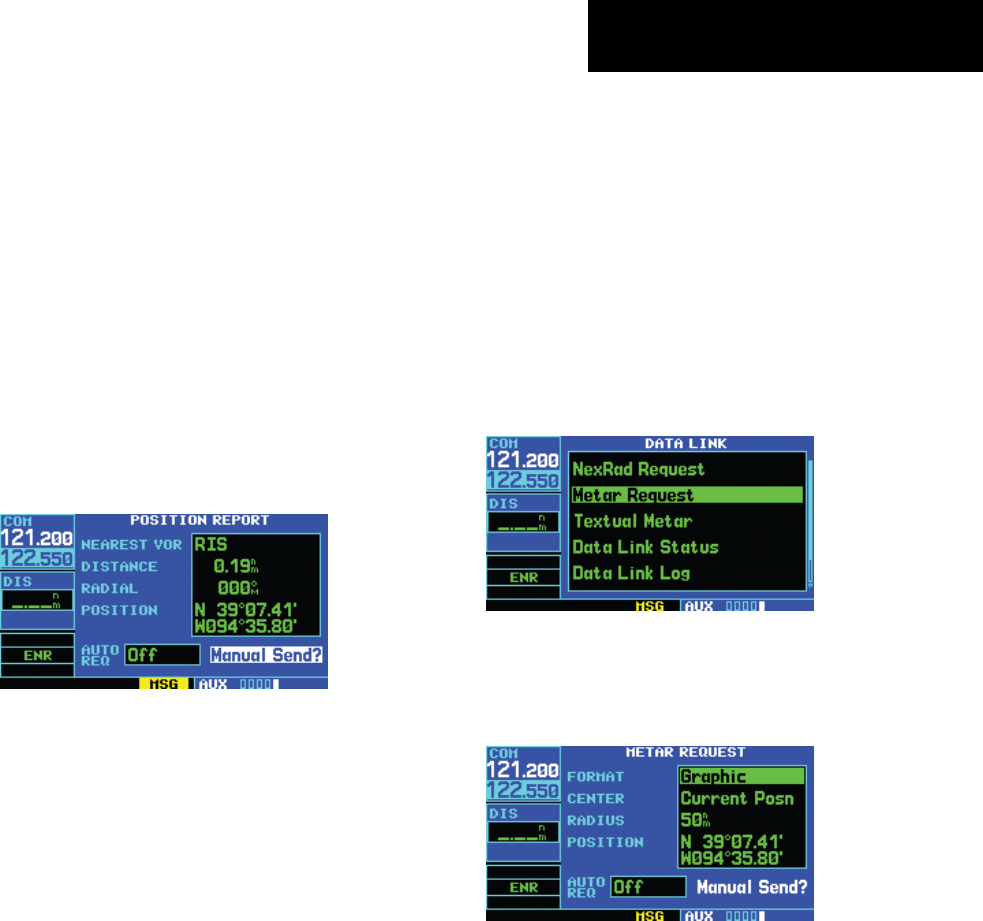

Figure 11-41 Position Report Page
Requesting Graphical METARs
Graphical METAR data can be requested from the Data
Link Page, Map Page, or Airport Page.
Requesting graphical METARs from the
Data Link Page:
1) Select the Data Link Page from the AUX Page
Group.
2) Press the small right knob to activate the
cursor. Turn the small right knob and highlight
‘Metar Request’ (Figure 11-42).
Figure 11-42 Data Link Page
3) Press the ENT Key. The ‘METAR REQUEST’
Page is displayed (Figure 11-43).
Figure 11-43 Metar Request Page
The METAR Request Page has the following user-
selectable fields:
• Format - This eld is used to select between
requesting the raw METAR text (Textual) or
requesting a graphical summary (Graphic) of
several METARs.
