EN Troubleshooting paper path problems 43
1
Troubleshooting paper path problems
Paper jams
Paper jams are posted if paper fails to arrive at or clear the paper path
sensors in the allowed time. Dedicated paper sensors (PS2, PS7,
PS3101, PS3103, and PS3104) detect whether paper is present in the
sensor and if the paper is fed normally (see the figure below). When the
control board detects a paper jam, it immediately stops the printing
process and displays the appropriate paper jam message for the sensor
that detects the paper jam.

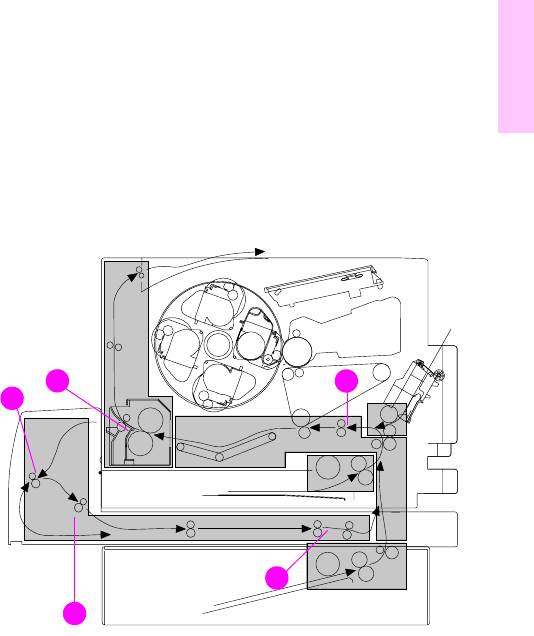

Paper jam sensors (shown with the optional 500-sheet paper feeder
and duplex unit installed)
1
2
3
4
5
