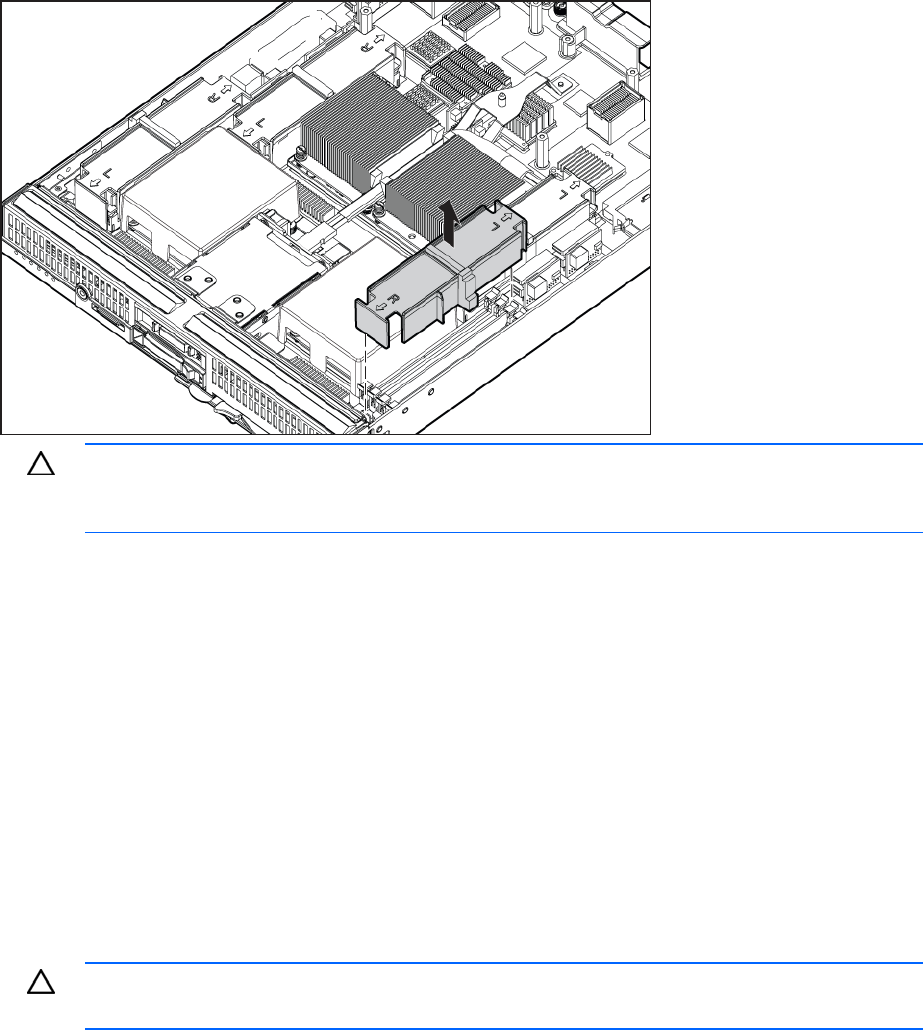

Remove the DIMM baffle.
CAUTION: To avoid damage to the server blade and the enclosure, install all DIMM baffles in
the proper location after adding or replacing DIMMs. DIMM baffles that are missing or
installed incorrectly can compromise server blade and enclosure cooling.
DIMM baffles for processor 1 and 2 memory banks have a single top gasket. DIMM baffles for processors
3 and 4 memory banks have a top and a side gasket.
To replace the component:
1.
Install the DIMM baffles:
o
Install DIMM baffles for processor 1 and 3 memory banks with the R toward the front of the
server blade.
o
Install DIMM baffles for processor 2 and 4 memory banks with the L toward the front of the
server blade.
2.
Install the access panel ("Access panel" on page 24).
3.
Install the server blade.
DIMMs
CAUTION: Use only HP DIMMs. DIMMs from other sources may adversely affect data
integrity.
To remove the component:
1.
Power down the server blade (on page 23).
2.
Remove the server blade (on page 23).
3.
Remove the access panel ("Access panel" on page 24).
4.
Remove all DIMM baffles ("DIMM baffle" on page 25).
