Removal and replacement procedures 33
7.

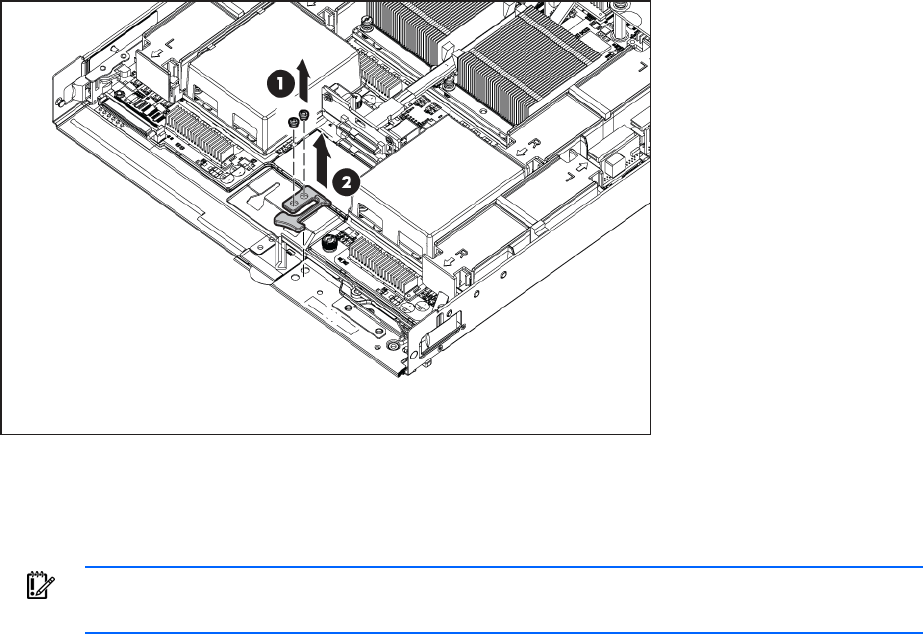

Remove the release button.
To replace the component, reverse the removal procedure.
Heatsink
IMPORTANT: Do not install the air baffles on heatsinks for processors 3 and 4.
To remove the component:
1.
Power down the server blade (on page 23).
2.
Remove the server blade (on page 23).
3.
Remove the access panel ("Access panel" on page 24).
4.
Remove the SAS cable, if installed ("SAS cable" on page 29).
5.
Remove the failed heatsink:
