Accessing the redundant ROM
If the system ROM is not corrupted, use RBSU to switch to the redundant ROM.
If the system ROM is corrupted, the system automatically switches to the redundant ROM in most cases. If
the system does not automatically switch to the redundant ROM, perform the following steps:
1.
Power down the server blade (on page 23).
2.
Remove the server blade (on page 23).
3.
Remove the access panel ("Access panel" on page 24).
4.
Change positions 1, 5, and 6 of the system maintenance switch to on.
5.
Install the access panel.
6.
Install the server blade in the enclosure and power up the server blade.
7.
After the system beeps, repeat steps 1 through 3.
8.
Change positions 1, 5, and 6 of system maintenance switch to off.
9.
Repeat steps 5 and 6.
If both the current and redundant ROM are corrupted, return the system board for a service replacement.

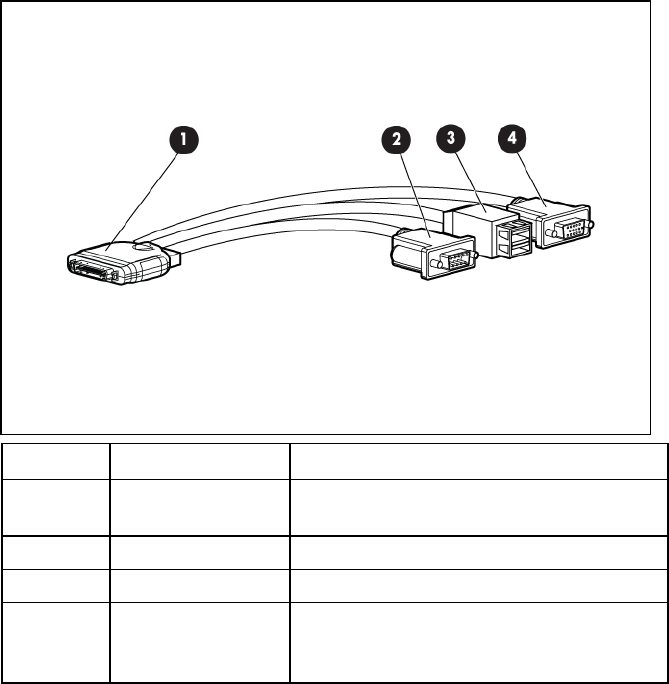

HP c-Class Blade SUV Cable
Item Connector Description
1 Server blade
For connecting to the SUV connector on the
server blade front panel
2 Video For connecting a video monitor
3 USB For connecting up to two USB devices
4 Serial
For trained personnel to connect a null modem
serial cable and perform advanced diagnostic
procedures
