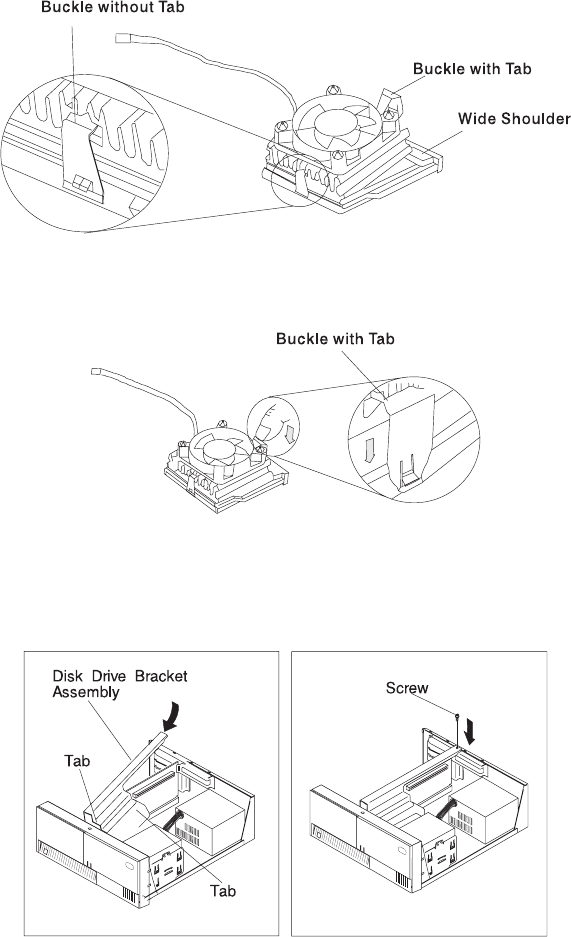

16. While tilting the fansink, hook the buckle without the tab over the front of the
processor socket as shown.
17. Press down on the buckle with the tab, as shown, to lock the fansink in place.
You hear a "click" indicating that the buckle is in place.
18. Connect the new fansink assembly's cable to the fansink cable connector on the
system board.
19. Reinstall the disk drive bracket assembly.
20. Reinstall any adapters you may have removed.
4-60
7043 43P Series User's Guide
