Installing Additional Components
Front Grill and Top Cover
Chapter 3
24
Observe all ESD safety precautions while performing this procedure. Failure to follow ESD
safety precautions could result in damage to the server.

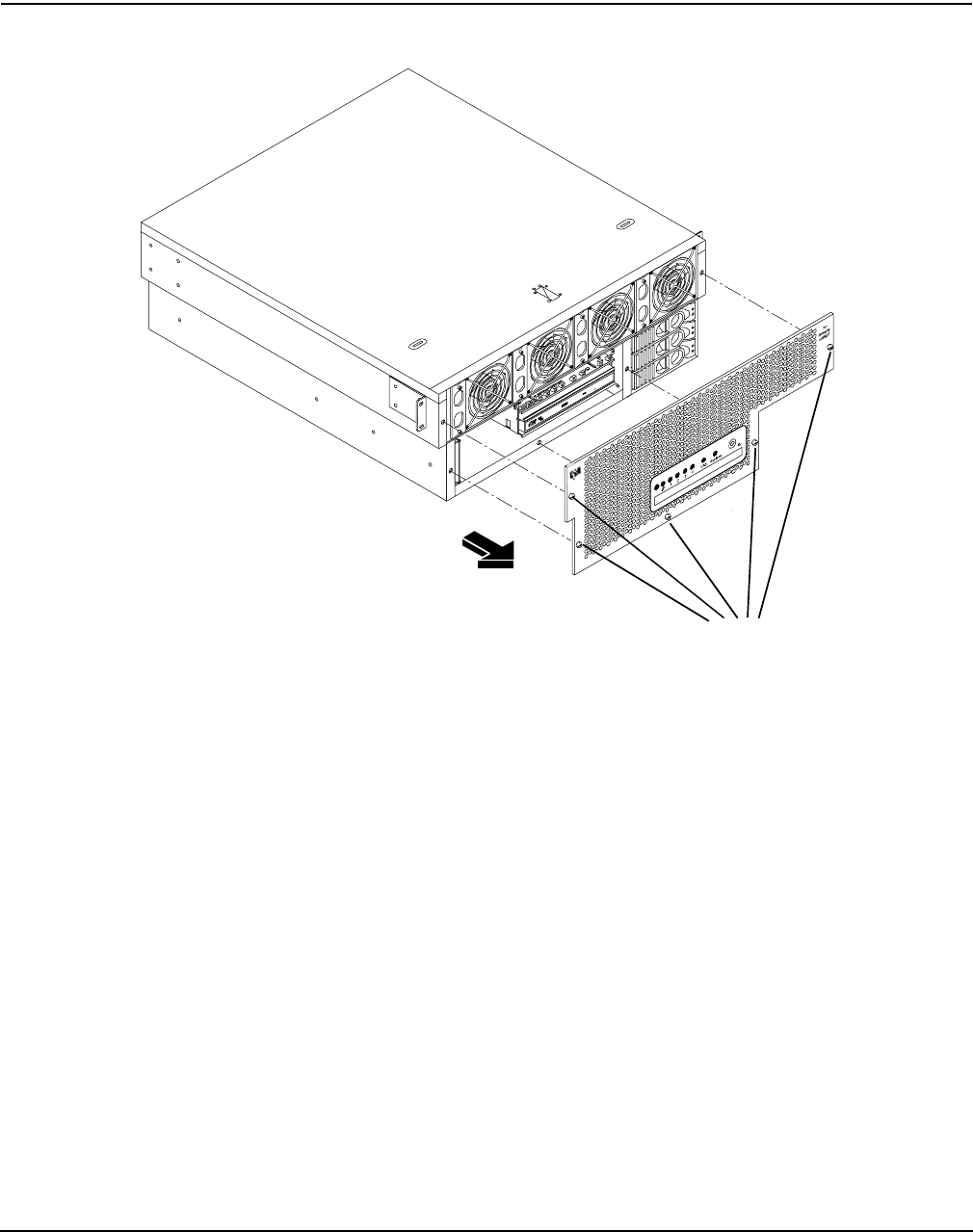

Figure 3-7 Removing the Front Grill
Removing the Front Grill
You must remove the front grill for access to the front mounted fans or the optical drive. To remove the front
grill, perform the following steps:
Step 1. Using an ACX-15 torx screwdriver, loosen the five captive screws that secure the grill to the
chassis.
Step 2. Pull the grill from the front of the server chassis.
Replacing the Front Grill
To replace the front grill, perform the following steps:
Step 1. Hold the grill against the front of the server chassis, in mounting position.
Step 2. Tighten the five captive screws to secure the grill to the server chassis.
chasfrntoff
Captive Screws
