Server setup 53
WARNING: To reduce the risk of electric shock, fire, or
damage to the equipment, do not plug telephone or
telecommunications connectors into RJ-45 connectors.
IMPORTANT: If the RILOE II board is installed in the server, be sure
that you attach the video cable to the video connector on the rear of the
RILOE II board. The standard video connector on the server rear panel
is not used when the RILOE II board is installed. For more information,
refer to the HP Remote Insight Lights-Out Edition II User Guide.

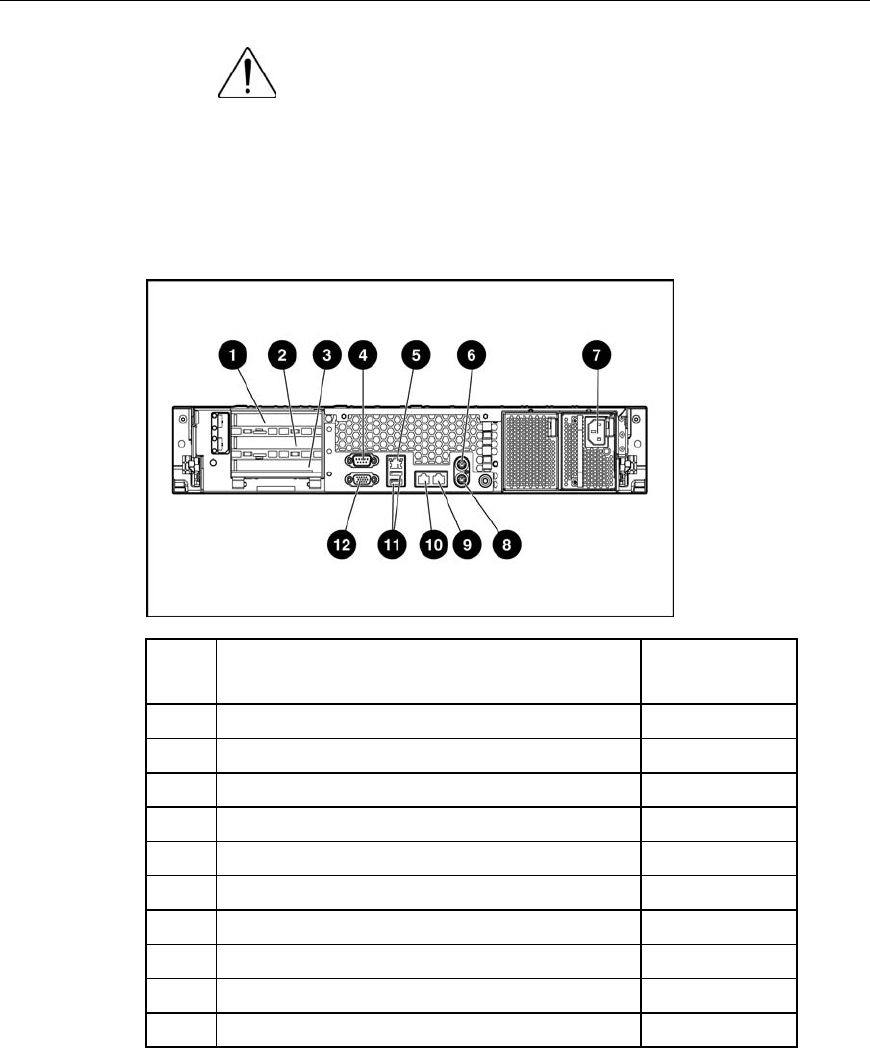

Item Description Connector
Color
1 PCI-X expansion slot 1, 64 bit/100 MHz, Bus A N/A
2 PCI-X expansion slot 2, 64 bit/100 MHz, Bus A N/A
3 PCI-X expansion slot 3, 64 bit/133 MHz, Bus B N/A
4 Serial connector Teal
5 iLO connector N/A
6 Mouse connector Green
7 Power cord connector N/A
8 Keyboard connector Purple
9 NIC 1 connector N/A
10 NIC 2 connector N/A
