Power-On Cabling
HP NonStop S-Series Hardware Installation and FastPath Guide—541880-001
C-5

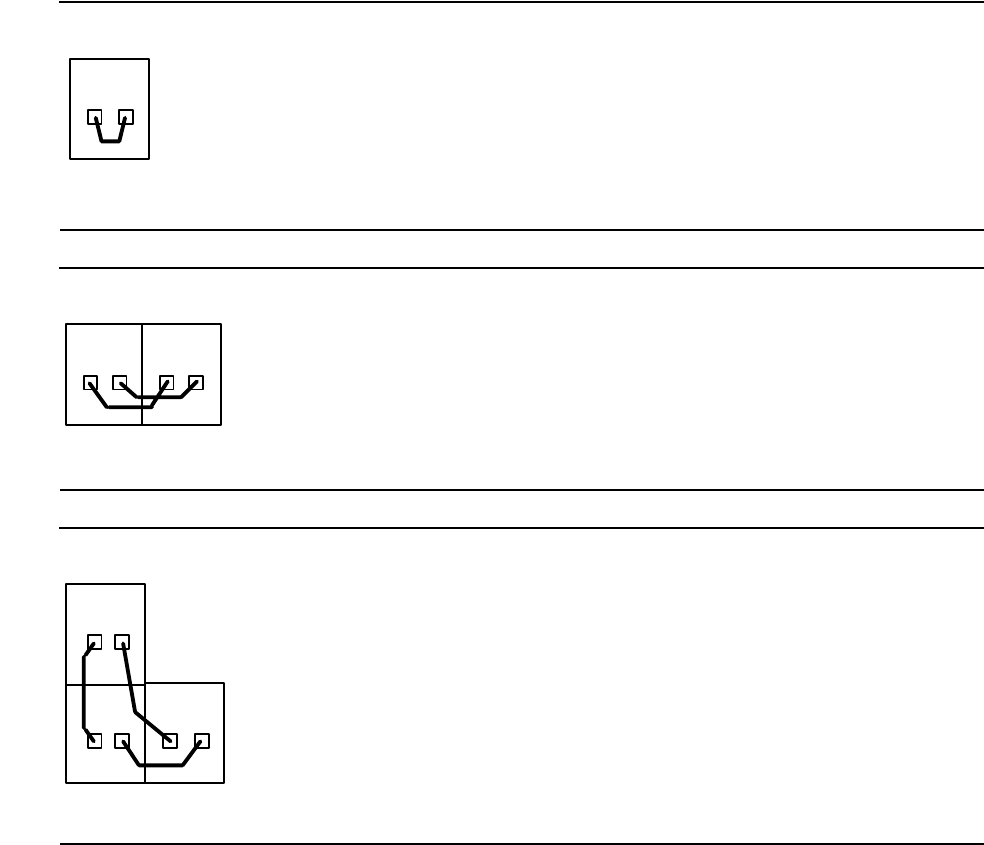

Figure C-4. Power-On Cable: One Processor Enclosure
Figure C-5. Power-On Cables: One Processor Enclosure, One I/O Enclosure
Figure C-6. Power-On Cables: One Processor Enclosure, Two I/O Enclosures
01
VST110.vsd
VST111.vsd
0111
VST119.vsd
01
11
12
