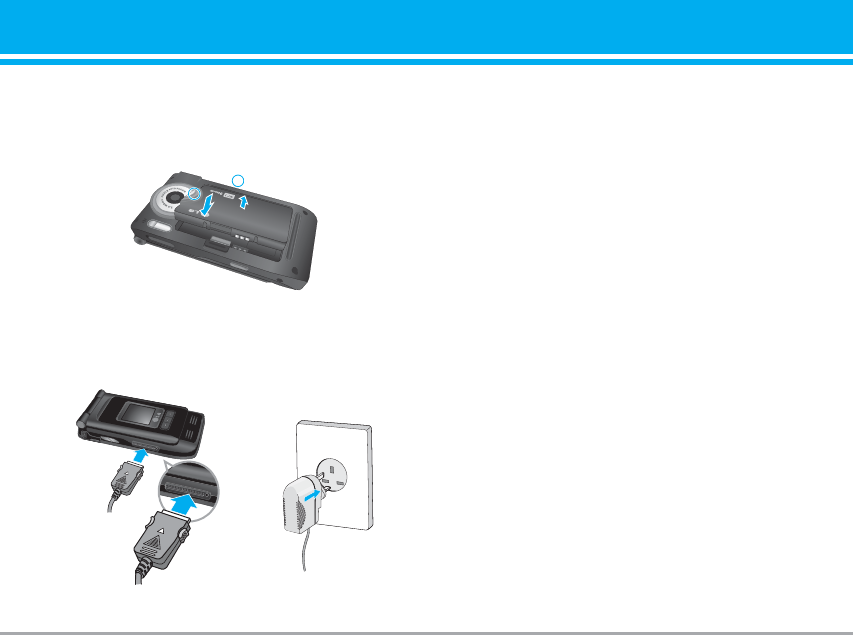

3. Install the battery.
Insert the bottom of the battery first into the bottom
edge of the battery compartment. Push down the top
of the battery until it snaps into space.
Charging the Battery
Before connecting the travel adapter to the phone
you must first install the battery.
1. Ensure the battery is fully charged before using the
phone for the first time.
2. With the arrow facing you as shown in the diagram
push the plug on the battery adapter into the
socket on the side of the phone until it clicks into
place.
3. Connect the other end of the travel adapter to the
mains socket. Use only the charger included in the
box.
4. The moving bars of battery icon will stop after
charging is complete.
n Caution
• Do not force the connector as this may
damage the phone and/or the travel adapter.
• If you use the battery pack charger out of
your own country, use an attachment plug
adaptor for the proper configuration.
• Do not remove your battery or the SIM card
while charging.
n Warning • Unplug the power cord and charger during
lightning storms to avoid electric shock or
fire.
• Make sure that no sharp-edged items such as
animal teeth or nails, come into contact with
the battery. There is a risk of this causing a
fire.
• Do not place or answer calls while charging
the phone as it may short-circuit the phone
and/or cause electric shock or fire.
2
1
