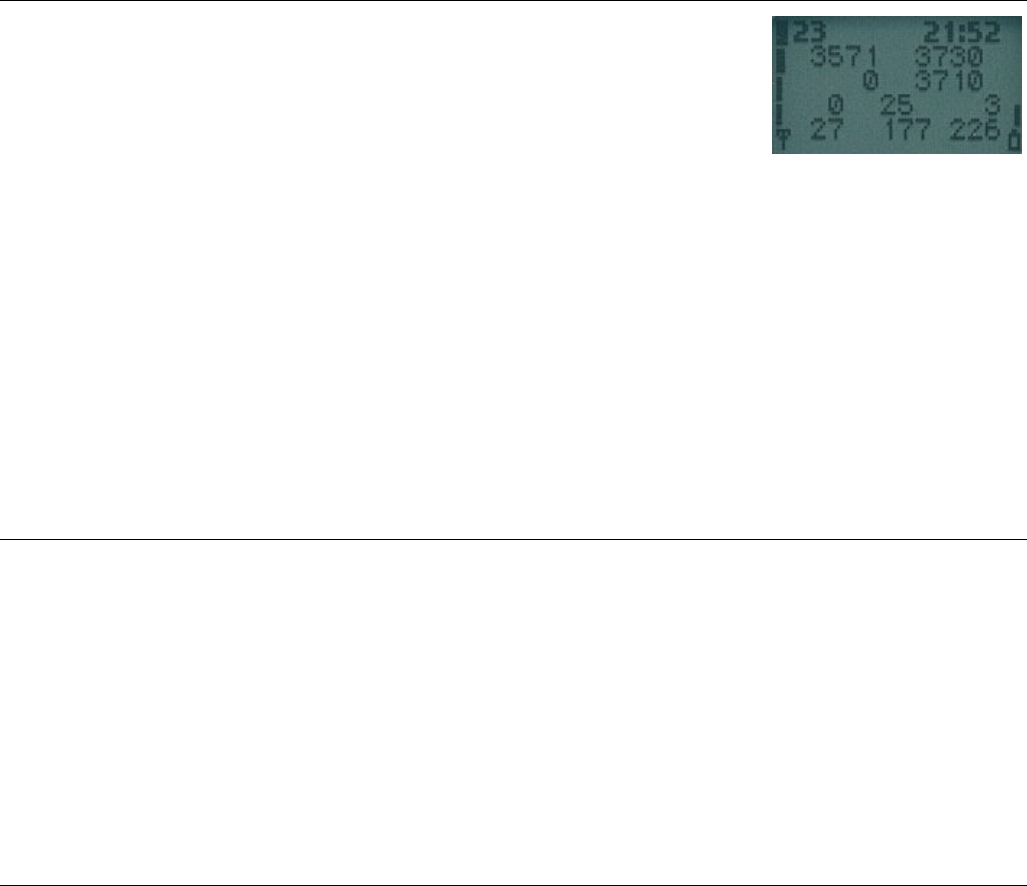

Display 23 – Battery and phone state monitor
************** ##############
* aaaa bbbb * #TxOn TxOff#
* cccc dddd * #ChCur Stdby#
*eee fff gggg* #Age CAP Curr#
*hhh iiiijjjj* #Tmp CmAhTarg#
************** ##############
aaaa TXon voltage (expected voltage with transmitter switched on), decimal point
not shown (a.aaa mV)
bbbb TXoff voltage (expected voltage with transmitter switched off), decimal
point not shown (b.bbb mV)
cccc charging current, decimal point not shown (c.ccc mA)
dddd predicted standby level (expected voltage in standby mode), decimal point
not shown (d.ddd mV)
eee estimated age for Li-ion battery (0:new to 100:old). NiMH always shows 33
fff battery's percentage level (0,25,50,100)
gggg current consumption indicated by PSM (0.1 mA)
hhh battery's temperature (C) (Only for Li battery)
iiii charged capacity (mAh) into battery
jjjj tells what is the next capacity target (mAh) to reach for next battery bar
level to be displayed
Display 24 – BSI values
************** ##############
* aaaa bbbb * #V_inst V_avg#
* cccc * #BSI value #
* dddd * #Elapsed time#
* eeee ffff * #RST_m RST_h#
************** ##############
aaaa
bbbb
cccc BSI (Battery Size Indicator) value
dddd minutes elapsed since charger was disconnected or phone was switched on
eeee
ffff
Display 30 – Audio API register display
************** ##############
* aaaa bbbb * #A1Cnf A2Cnf#
* cccc dddd * # ST AU3 #
* eeee ffff * #1Tone 2Tone#
* gggg hhhh * # Conf HFVol#
************** ##############
aaaa API_AUD1_CTRL
bbbb API_AUD2_CTRL
cccc API_SIDETONE
dddd API_AU3
eeee API_1_TONE (first frequency of DTMF generator)
ffff API_2_TONE (first frequency of DTMF generator)
gggg API_CONFIG
hhhh API_HF_VOL (Volume setting for Audio output)
