Nokia 21XX Cell Phone User Manual



6

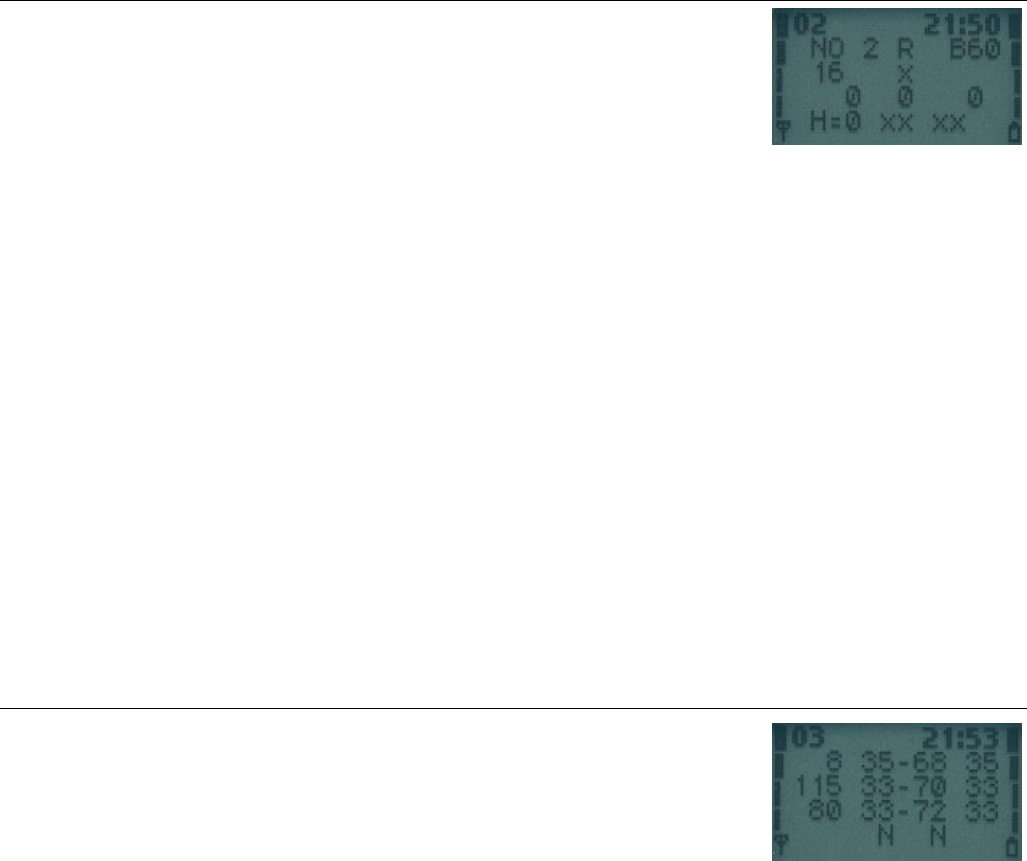

Display 2 – More info about serving cell
++++++++++++++ ##############
+ aa b c Bdd + #PM RAR Ro BC#
+ ee f + #RelR QLF #
+ ggg hh iii + #CRO TO PenT #
+ H=j mm nn + #H MAIO HSN #
++++++++++++++ ##############
aa paging mode
NO : normal paging
EX : extended paging
RO : paging reorganization
SB : same as before
b maximum number of Random Access retransmission
c roaming indicator, values are 'R' or ' '.
Bdd Letter B and BSIC value, range is 0 - 63.
ee Reason of last call release (See Display 39, CC cause codes)
f RX quality (full), range is 0 - 7
ggg Cell reselection offset, range 0 - 126 dB.
[0 .. 63] * 2 dB. 'xxx' in dedicated mode.
hh Temporary offset, range 0 - 60 dB.
[0 .. 7] * 10 dB. 70 dB means infinite time.
'xx' in dedicated mode.
iii Penalty time, range 0 - 620 s.
[0 .. 31] * 20 s. 'xxx' in dedicated mode.
j Hopping channel
0 Single RF channel
1 RF hopping channel
mm mobile allocation index offset, MAIO
Range: 00 to 63 / xx when H=0
nn hopping sequence number, HSN
Range: 00 to 63 / xx when H=0
Display 3 – Serving cell, 1st and 2
nd
neighbour
++++++++++++++ ##############
+aaabbbcccddd+ #SCH C1 rx C2#
+aaabbbcccddd+ #1CH C1 rx C2#
+aaabbbcccddd+ #2CH C1 rx C2#
+ ef gh + # 1N 2N #
++++++++++++++ ##############
1. row: serving cell information
2. row: 1. neighbour information
3. row: 2. neighbour information
4. row, ef: 1. neighbour information
4. row, gh: 2. neighbour information
aaa carrier number in decimal, EGSM channels are displayed as Eaa
bbb idle mode : C1 value, range is -99 - 999
ded. Mode : 'B' and BSIC value
ccc RX level in dBm, minus sign is not shown if <=-100
ddd C2 value, range is -99 - 999
e,g F : cell is in a forbidden location area
f,h B : cell is barred
N : cell is normal priority
L : cell is low priority
