Nokia 21XX Cell Phone User Manual



7

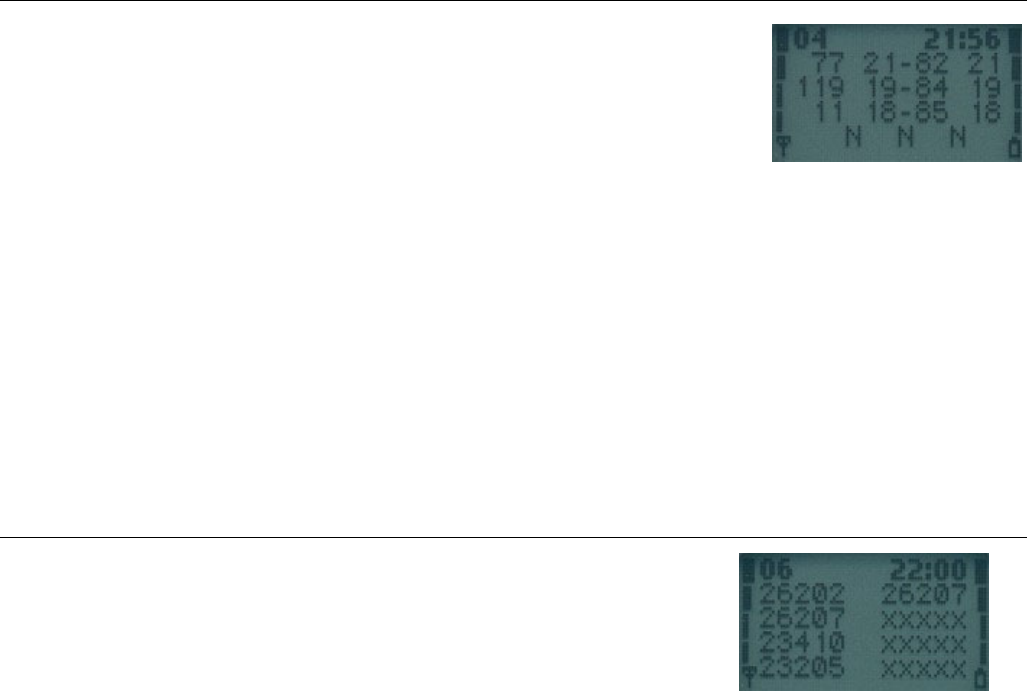

Display 4 & 5 – 3
rd
to 8
th
neighbour cell
++++++++++++++ ##############
+aaabbbcccddd+ #3CH C1 rx C2#
+aaabbbcccddd+ #4CH C1 rx C2#
+aaabbbcccddd+ #5CH C1 rx C2#
+ ef gh ij + # 3N 4N 5N #
++++++++++++++ ##############
1. row: 3./6. neighbour information
2. row: 4./7. neighbour information
3. row: 5./8. neighbour information
4. row, ef: 3./6. neighbour information
4. row, gh: 4./7. neighbour information
4. row, ij: 5./8. neighbour information
aaa carrier number in decimal, EGSM channels are displayed as Eaa
bbb idle mode : C1 value, range is -99 - 999
ded. Mode : 'B' and BSIC value
ccc rx level in dBm, minus sign is not shown if <=-100
ddd C2 value, range is -99 - 999
e,g,i F : cell is in a forbidden location area
f,h,j B : cell is barred
N : cell is normal priority
L : cell is low priority
Display 6 – Network selection display
++++++++++++++ ##############
+aaabb aaabb+ #LReg 1_For#
+aaabb aaabb+ #1_Pre 2_For#
+aaabb aaabb+ #2_Pre 3_For#
+aaabb aaabb+ #3_Pre 4_For#
++++++++++++++ ##############
This display shows the last registered networks country code (MCC) and
network code (MNC) as well as the codes for four forbidden networks
and the first 3 preferred networks.
If a three-digit MNC is used (GSM1900), display looks different:
++++++++++++++
+aaabbbaaabbb+
+aaabbbaaabbb+
+aaabbbaaabbb+
+aaabbbaaabbb+
++++++++++++++
1. row: last registered network - 1st forbidden network
2. row: 1st preferred network - 2nd forbidden network
3. row: 2nd preferred network - 3rd forbidden network
4. row: 3rd preferred network - 4th forbidden network
aaa country code coded in BCD
bbb network code coded in BCD, third digit can be 'F'
