Nokia 21XX Cell Phone User Manual



9

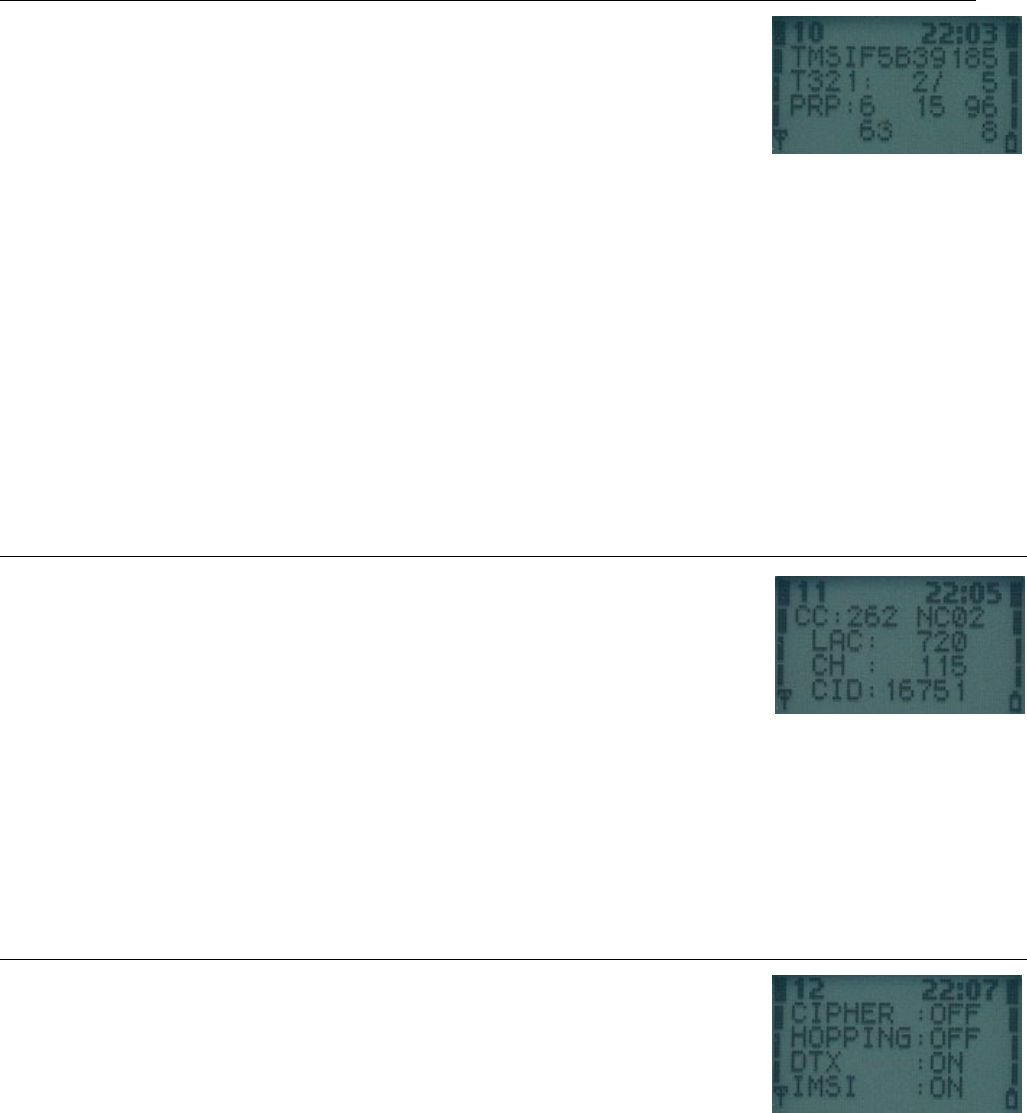

Display 10 – Paging Repetition Period, TMSI, Location Update Timer, AFC and AGC
++++++++++++++ ##############
+TMSIaaaaaaaa+ #TMSI(hex) #
+T321:bbb/ccc+ #T3212ctr/tim#
+PRP:d ee ff+ #PaRP DSF AGC#
+ ggggg hhh + # AFC Ch #
++++++++++++++ ##############
aaaaaaaa last assigned TMSI value in hex format
bbb Current value of T3212 counter (range is 000 - 'ccc'), where 1 means 6 min
time. So, if this value is 2 less than 'ccc' then next periodic location
updating will be made within 2 * 6 min = 12 minutes.
ccc Timeout value of T3212 counter (range is 000 - 240, where 1 means 6 min
time between location updates and 240 means 240 * 6 min = 24 h between
location updates. 000 means that a periodic location update will not
occur) This value is received from the network.
d Value of paging repetition period (range is 2 – 9, which means paging will
be in every Xth multiframe. When paging is in every second multiframe,
mobile takes more current than if it were in every 9th multiframe)
ee Downlink signalling failure value. If value is negative, 0 is shown.
Maximum value is 45. When mobile is on TCH then xx is shown.
ff Gain value on TCH/SDCCH, range is 0 - 93
ggggg VCTCXO AFC DAC control, range is -1024 - 1023
hhh Serving cell channel number
Display 11 – Network parameters
++++++++++++++ ##############
+CC:aaa NCbbb+ # MCC MNC #
+ LAC:ccccc + #LocAreaCode #
+ CH : dddd + #ServChannel #
+ CID:eeeee + # CellId #
++++++++++++++ ##############
aaa MCC value in decimal (MCC=Mobile Country Code)
bbb MNC value in decimal (MNC=Mobile Network Code)
Three digits are shown only in GSM1900.
Two digits are shown in GSM900 and GSM1800.
ccccc LAC value in decimal (in older SW-versions this value is in hexadecimal)
dddd Serving cell channel number
eeeee Cell Identifier in decimal (in older SW-versions this value is in
hexadecimal)
Display 12 – Ciphering, hopping, DTX Status and IMSI
++++++++++++++ ##############
+CIPHER :aaa + #CipherValue #
+HOPPING:bbb + #HoppingValue#
+DTX :ccc + #DTXValue #
+IMSI :ddd + #IMSIAttach #
++++++++++++++ ##############
aaa ciphering value, OFF/A51/A52
bbb hopping value, ON/OFF
ccc DTX value ON/OFF
ddd IMSI attach
ON : IMSI attach on
OFF : IMSI attach off
These values are updated only on when the phone is active on a TCH.
