* LNB cable also feeds the LNB with a supply voltage of 13/18 V (V/H polarisation)
and a 0/22 kHz signal (bandswitch). Max LNB current is approximately 500 mA.
ANTENNA *
Satellite dish input
(F-connector)

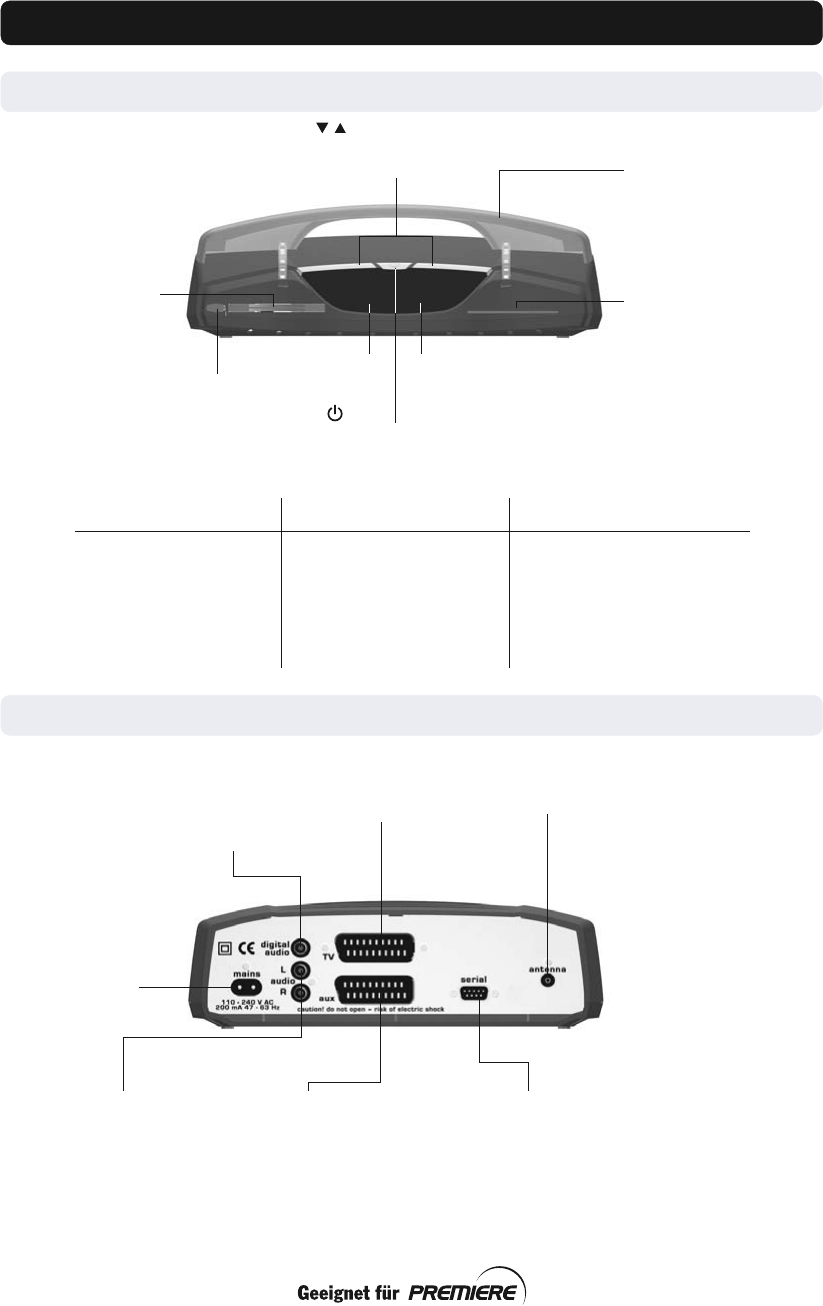

Rear panel
Front panel
Front and rear panel
Function
ON
Stand-by
Locked to channel
Remote control feedback
SW download
Error
LED indicator 1
Green
Red
Green
Green
Continous green flashing
Continous red flashing
LED indicator 2
Green
-
Red if not locked
Single flash
Continous green flashing
Continous red flashing
to put the Mediamaster
into and take it out of
stand-by mode
to change channels
and to move through
menus
Indica-
tor 1
Indica-
tor 2
Slot
for inserting of a
smartcard
Slot
for a CI module
with a smartcard
Button
push the button to re-
lease a CI module that
has been inserted
Lid
open the lid in order to
insert the CI module
and the smartcard
AUDIO L R
RCA connectors
stereo output for a con-
nection to an analogue
HiFi system
TV SCART
for connecting
to the TV
AUX SCART
for connecting to a VCR
or other Audio/Video
equipment
DIGITAL AUDIO
RCA connector
S/PDIF digital out-
put for connecting
to a HiFi system
Mains cable
110-240 V AC
for connecting of
the mains cable
SERIAL PORT
for connecting to a PC
